(1.92.87/09) - FLAT TYPE SIDE EXTENS. FOR REAR MUDGUARDS IN LOW AND HIGH POSITION - EXTENSIONS (VAR.337871 / 743530; VAR.335870)

Запчасти Case IH FARMALL 105V (1.92.87/09) - FLAT TYPE SIDE EXTENS. FOR REAR MUDGUARDS IN LOW AND HIGH POSITION - EXTENSIONS (VAR.337871 / 743530; VAR.335870) (10) - OPERATORS PLATFORM/CAB

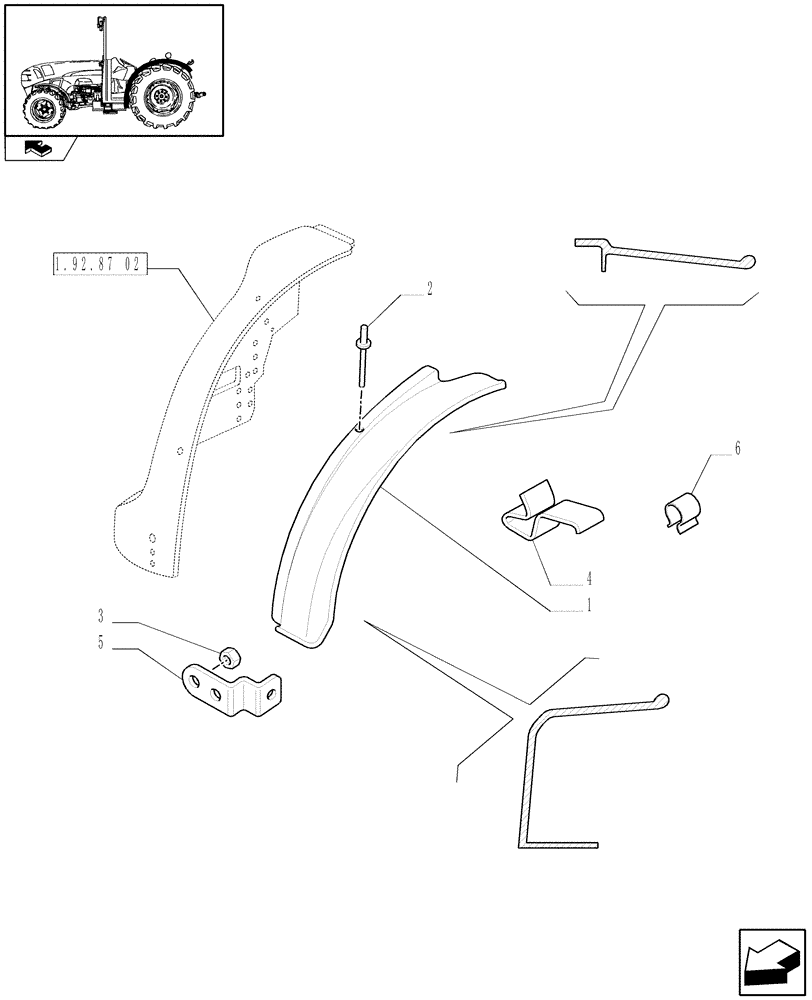

Схема запчастей Case IH FARMALL 105V - (1.92.87/09) - FLAT TYPE SIDE EXTENS. FOR REAR MUDGUARDS IN LOW AND HIGH POSITION - EXTENSIONS (VAR.337871 / 743530; VAR.335870) (10) - OPERATORS PLATFORM/CAB
1.92.87 02
4
1
2
3
5
home
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5188727

FENDER

RH

1шт.

1

5188732

FENDER

LH

1шт.

2

5186642

RIVET,Pop, 4.85mm OD x 14.5mm L

DIA=4.8

6шт.

3

16104414

LOCK NUT,M8 x 1.25

4шт.

4

87636427

SPRING

14шт.

5

5189533

BRACKET

2шт.

6

82010838

SPRING CLIP,0.5mm Thk

6шт.

Выбрано товаров: 7
