Запчасти Case IH FARMALL 105V (1.92.87/02[01]) - PLATE FOR REAR SUSPENSION - L/CAB (10) - OPERATORS PLATFORM/CAB

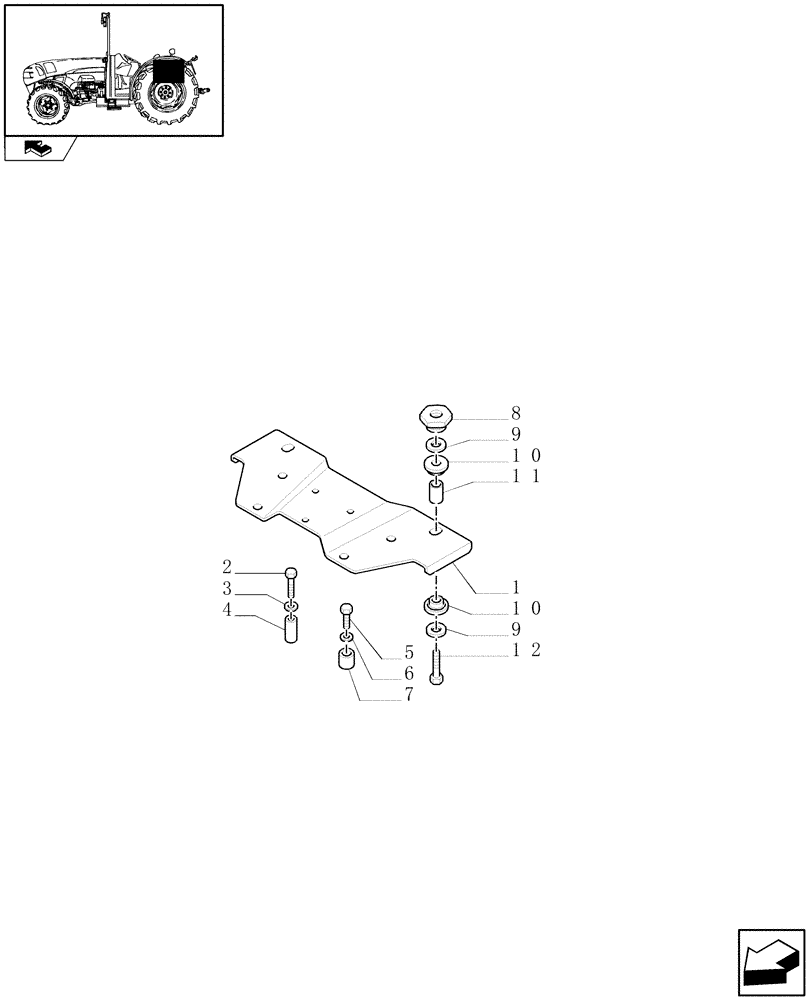

Схема запчастей Case IH FARMALL 105V - (1.92.87/02[01]) - PLATE FOR REAR SUSPENSION - L/CAB (10) - OPERATORS PLATFORM/CAB
home
5
9
9
12
2
4
1
10
7
10
11
8
6
3

Артикул

Название

Примечание

Количество

1

5187761

PLATE

1шт.

2

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

4

5187753

SPACER

9 x 20 x 37

2шт.

5

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

6

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

7

5177775

SPACER

14 x 25 x 17

2шт.

8

5187752

FLANGE NUT

2шт.

9

5177736

WASHER,Plane, 12.5mm ID x 65mm OD x 8mm Thk

2шт.

9

5168605

WASHER,Plane, 12.5mm ID x 65mm OD x 3.5mm Thk

12.5 x 65 x 3.5

2шт.

10

5187860

LOCKING RING,16.5mm ID x 60mm OD x 15mm Thk

4шт.

11

5187859

SPACER,12.2mm ID x 17mm OD x 25mm L

12.25 x 17 x 25

2шт.

12

15541131

SCREW,Hex, M12 x 1.25 x 65mm, Cl 10.9

2шт.

Выбрано товаров: 13
