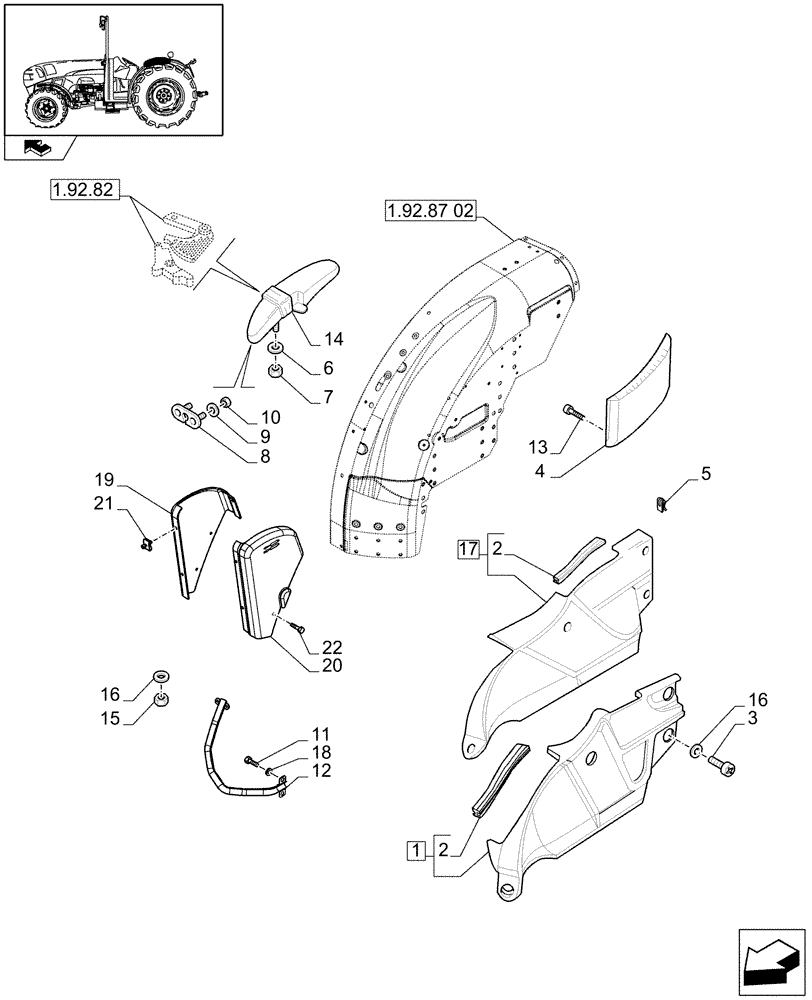

Запчасти Case IH FARMALL 105V (1.92.87[03]) - TRIM PANEL, RIGHT SIDE, MDC, W/O CAB (10) - OPERATORS PLATFORM/CAB

1

5190243

GUARD

ASSY, Incl 2

1шт.

2

44914718

GASKET

L=322 mm, Cut to Length

1шт.

3

13273824

SCREW,Pozidriv Pan Hd, M5 x 8mm, Cl 8.8, Full Thd

4шт.

4

5189664

SECTOR

1шт.

5

11064074

RETAINER,8mm ID

D=8

1шт.

6

12647604

WASHER,6.15mm ID x 16mm OD x 2mm Thk

3шт.

7

12574221

NUT,M6 x 1, Cl 10

3шт.

8

5183610

COVER PLATE

1шт.

9

12642804

WASHER,4.15mm ID x 12mm OD x 1mm Thk

2шт.

10

12574021

NUT,M4 x .7, Cl 10

2шт.

11

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

M6 x 16

2шт.

12

84481992

PROTECTION STRIP

1шт.

13

15687804

SCREW,9.5mm L

2шт.

14

47125536

COVER

1шт.

15

15896224

NUT,Hex, M6

M4

6шт.

16

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

10шт.

17

5190244

GUARD

ASSY, Incl 2

1шт.

3 Remote Valves, Var. 330390 - 331390 / Commercial Feature 743525;

1шт.

3 Remote Valves, Var. 330391 - 333391 - 335391 / Commercial Feature 743526;

1шт.

3 Remote Valves, Var. 331391 - 334391 / Commercial Feature 743527; Var. 334391 - 335391.

1шт.

18

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

19

84490755

COVER

1шт.

20

84490756

TRIM PANEL

1шт.

21

5174673

FASTENER,12mm OD

3шт.

22

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

3шт.
