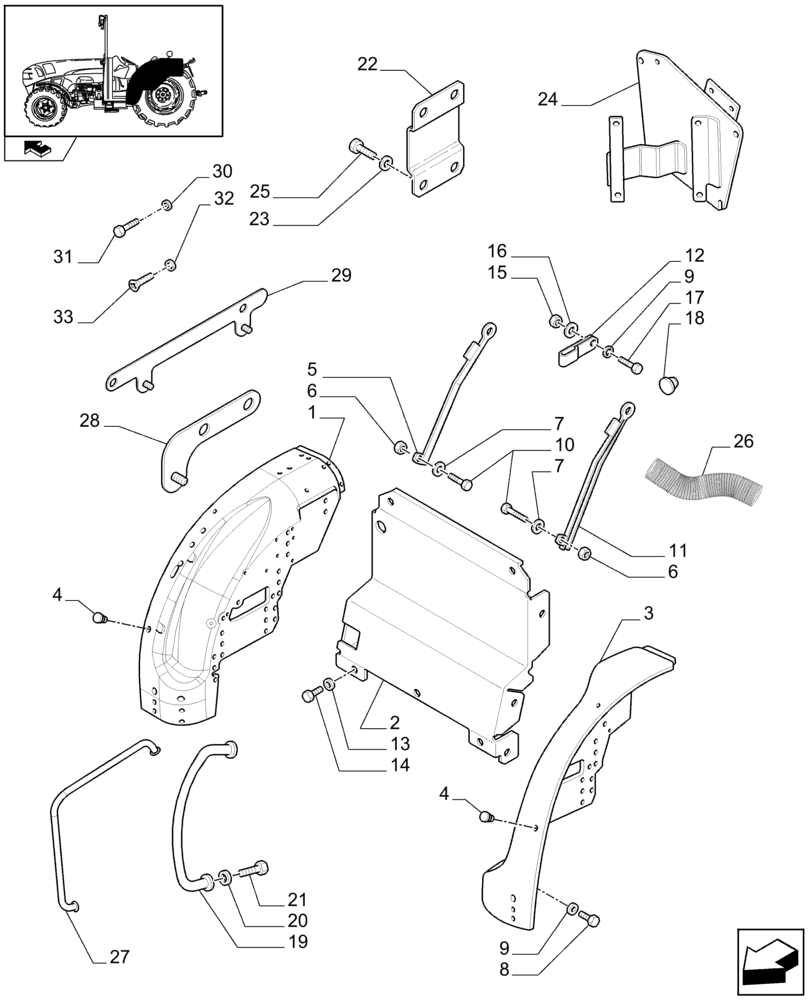

Запчасти Case IH FARMALL 105V (1.92.87[02]) - MUDGUARDS & FOOTBOARDS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

84471776

FENDER

RH

1шт.

2

5188329

PARTITION

1шт.

65V, 75V, 85V, 95V, 105V Models

1шт.

2

5188336

PARTITION

1шт.

75N, 85N, 95N, 105N Models

1шт.

3

84471777

FENDER

LH

1шт.

4

5120043

PLUG,12mm, Black

D=12

2шт.

5

5189164

SHIELD

1шт.

75N, 85N, 95N, 105N Models

1шт.

5

84225833

COVER

1шт.

65V, 75V, 85V, 95V, 105V Models

1шт.

6

12574215

NUT,M6 x 1, Cl 8

2шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

8

14783714

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 16mm, Cl 5.8

14шт.

8

14783914

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

6шт.

9

11198574

BELLEVILLE WASHER,Belleville, M10.5

, Serial Range: -`0

1шт.

QTY 2 for 65V, 75V, 85V, 95V, 105V Models; QTY 1 for 75N, 85N, 95N, 105N Models

1шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

11

5189165

SHIELD

1шт.

75N, 85N, 95N, 105N Models

1шт.

11

84225844

COVER

1шт.

65V, 75V, 85V, 95V, 105V Models

1шт.

12

5188267

COLLAR CLAMP,13mm ID x 20mm W

, Serial Range: -`0

1шт.

QTY 2 for 65V, 75V, 85V, 95V, 105V Models; QTY 1 for 75N, 85N, 95N, 105N Models

1шт.

13

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8 x 16

3шт.

14

5182280

SCREW,Hex, M8 x 16mm, Cl 8.8

3шт.

15

12164714

NUT,M10 x 1.25, Cl 8

, Serial Range: -`0

1шт.

QTY 2 for 65V, 75V, 85V, 95V, 105V Models; QTY 1 for 75N, 85N, 95N, 105N Models

1шт.

16

13550404

WASHER,10.2mm ID x 20mm OD x 2mm Thk

D=10, Serial Range: -`0

1шт.

QTY 2 for 65V, 75V, 85V, 95V, 105V Models; QTY 1 for 75N, 85N, 95N, 105N Models

1шт.

17

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

, Serial Range: -`0

1шт.

QTY 2 for 65V, 75V, 85V, 95V, 105V Models; QTY 1 for 75N, 85N, 95N, 105N Models

1шт.

18

5125039

PLUG

D=8

2шт.

18

5155362

PLUG,17mm

D=17

1шт.

18

5155575

PLUG,10mm, Black

D=10

10шт.

18

5155613

PLUG,14mm , Black

D=14

28шт.

19

5187572

HANDRAIL

LH

1шт.

20

5185284

GASKET

2шт.

21

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

7шт.

22

87736894

REINFORCEMENT

1шт.

23

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

24

87396175

LOCKING TAB

1шт.

25

10902014

BOLT,Hex, M6 x 12mm, Cl 5.8, Full Thd

4шт.

26

84142879

FLEXIBLE HOSE,19.00 mm ID x 410.00 mm

1шт.

27

84485422

HANDRAIL

RH

1шт.

28

47382206

BRACKET

1шт.

29

47385920

BRACKET

1шт.

30

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

15шт.

31

12575421

NUT

6шт.

32

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

1шт.

33

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

3шт.
