Запчасти Case IH FARMALL 105V (1.92.83/01) - LESS REMOTE CONTROL VALVES - FRONT CONSOLE TRIM (VAR.337391-338391 / 743528) (10) - OPERATORS PLATFORM/CAB

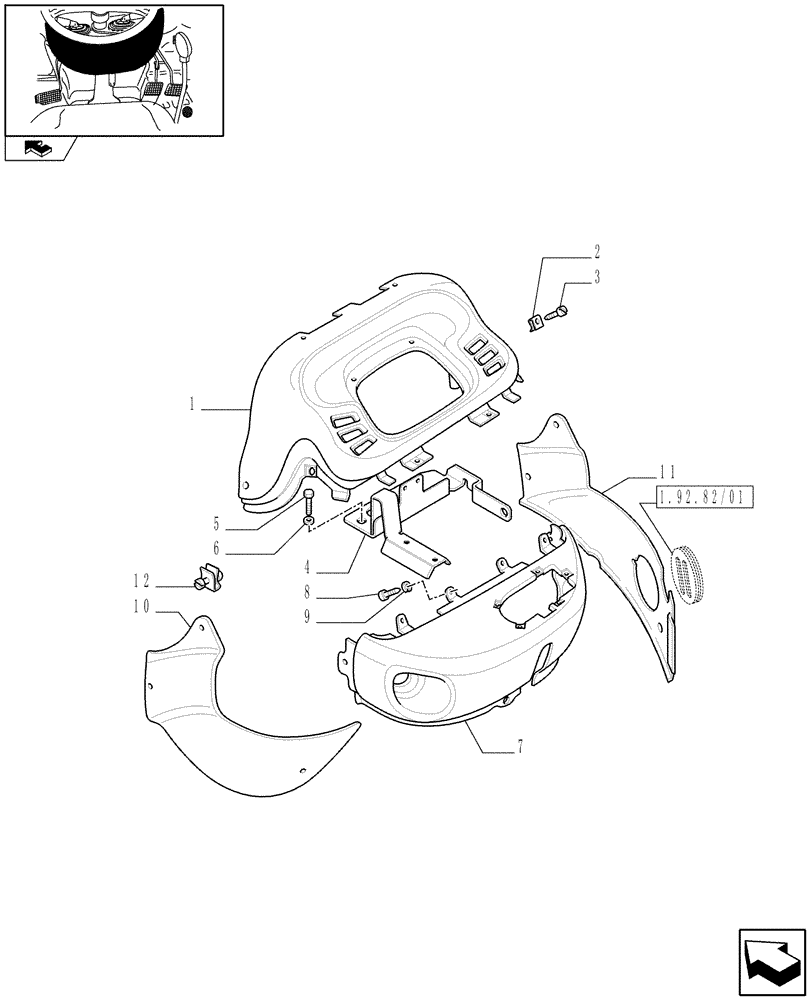

Схема запчастей Case IH FARMALL 105V - (1.92.83/01) - LESS REMOTE CONTROL VALVES - FRONT CONSOLE TRIM (VAR.337391-338391 / 743528) (10) - OPERATORS PLATFORM/CAB
11
2
12
home
9
7
5
8
10
3
1.92.82/01
1
4
6

Артикул

Название

Примечание

Количество

1

5199936

INSTRUMENT PANEL

1шт.

2

14189974

BRACKET,J, #6

9шт.

3

15644007

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 13mm

1шт.

3

5182249

SELF-TAP SCREW,Pan Hd, M4.2 x 1.4 x 13mm

8 x 13, Black

9шт.

4

84494227

BRACKET, SUPPORTING

1шт.

5

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

6

5174673

FASTENER,12mm OD

6шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

8

5182250

SELF-TAP SCREW,Phillips Drive, Round HD, M4 x 16mm

M4 x 16

4шт.

9

14496204

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

D=9

4шт.

10

5175279

SIDE PANEL

LH

1шт.

11

5198444

SIDE PANEL

RH

1шт.

12

5190365

DASHBOARD

1шт.

Выбрано товаров: 13
