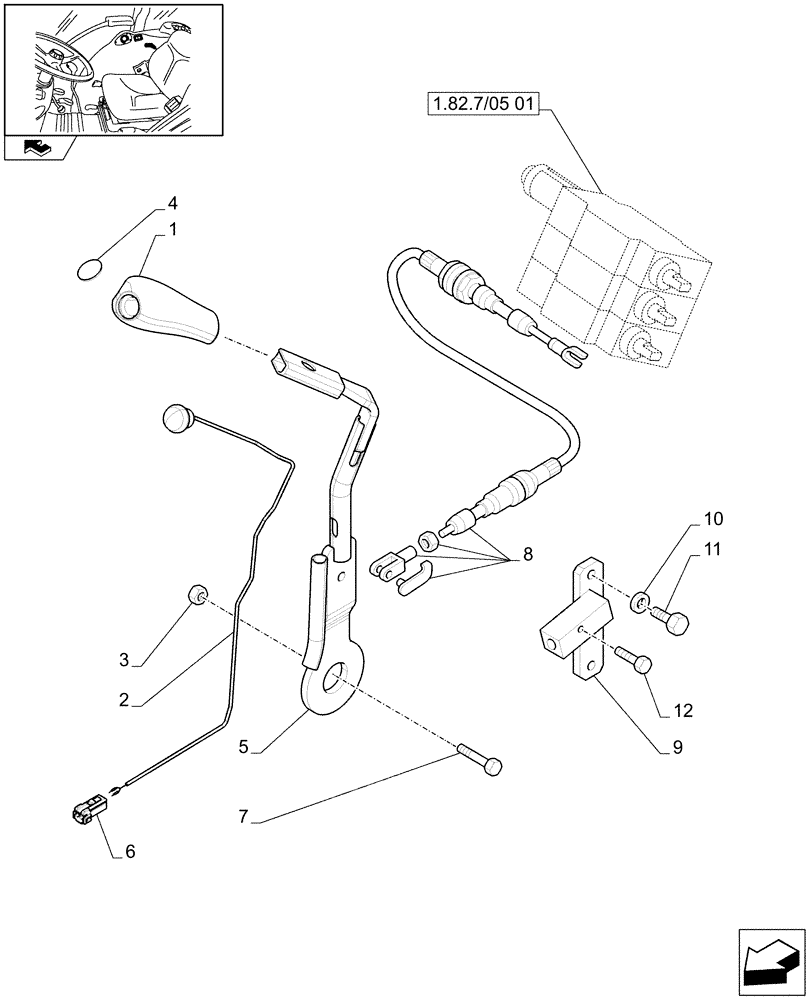

Запчасти Case IH FARMALL 105V (1.92.82/05[02]) - THREE REMOTE VALVES WITH FLOW DIVIDER FOR MDC, CONTROL LEVER (VAR. 332391 – 335391 / 743526) (10) - OPERATORS PLATFORM/CAB

1

84121634

KNOB

1шт.

2

84123781

SWITCH

1шт.

3

16102314

THIN NUT,M8 x 1.25, Cl 04

1шт.

4

47057201

IDEOGRAM

Shift Symbol 3

1шт.

5

84494494

LEVER

3rd Command Hand Distributor

1шт.

6

87736475

WIRE CONNECTOR,Male, 2 Cavities/Pins

1шт.

7

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

1шт.

8

5199201

CABLE

645 mm.

1шт.

9

5188363

BLOCK

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

2шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

1шт.
