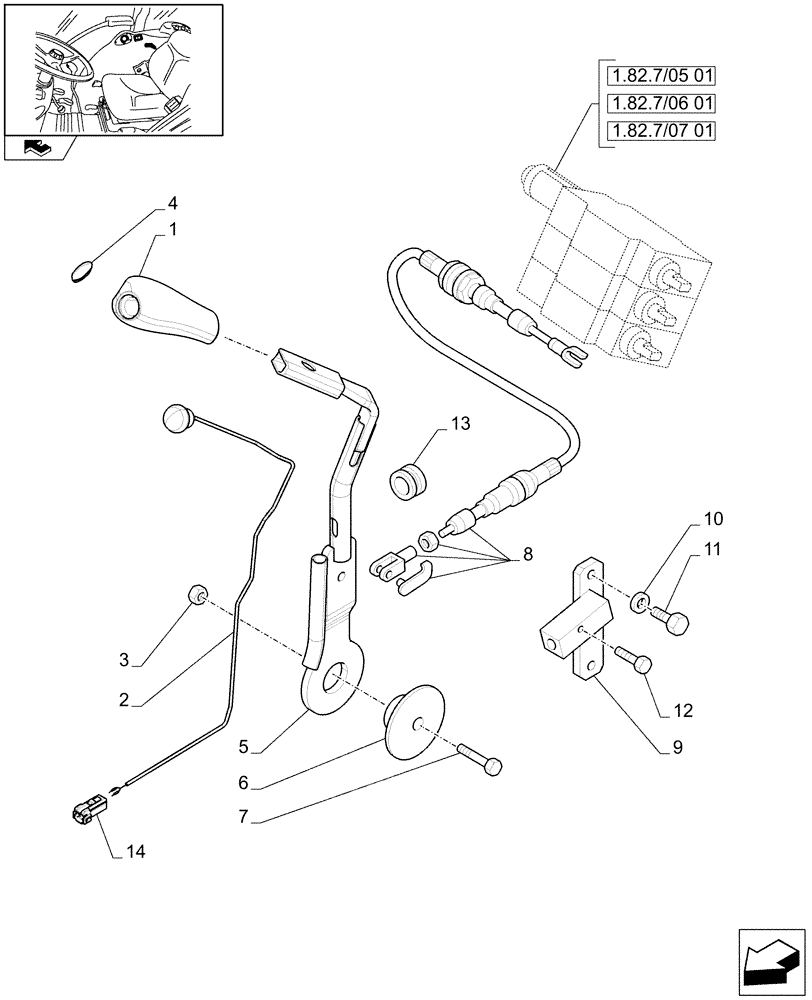

Запчасти Case IH FARMALL 105V (1.92.82/03[05]) - THREE REMOTE VALVES WITH FLOW DIVIDER, CONTROL LEVER (VAR. 330391 – 332139 – 332140 – 332141 – 333391 – 336391 / 743526; VAR. 331391 – 332145 – 332146 - 334391 / 743527) (10) - OPERATORS PLATFORM/CAB

1

87707810

KNOB

1шт.

2

84123781

SWITCH

1шт.

3

16102314

THIN NUT,M8 x 1.25, Cl 04

1шт.

4

47057201

IDEOGRAM

Shift Simbol 3

1шт.

5

84494491

LEVER

W/CAB

1шт.

3rd Command Hand Distributor

1шт.

Three Remote Valves With Flow Divider, Var. 330391 � 332139 � 332140 � 332141 � 336391 / Commercial Feature 743526

1шт.

Three Remote Valves With Flow Divider, Var. 331391 � 332145 � 332146 / Commercial Feature 743527

1шт.

5

84494494

LEVER

L/CAB

1шт.

3rd Command Hand Distributor

1шт.

Three Remote Valves With Flow Divider, Var. 330391 � 333391 / Commercial Feature 743526

1шт.

Three Remote Valves With Flow Divider, Var. 331391 � 334391 / 743527

1шт.

6

47126539

SPACER,8.5mm ID x 50mm OD x 11mm L

W/CAB

1шт.

7

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

1шт.

8

5199202

CABLE,645mm L

645 mm, W/CAB

1шт.

Three Remote Valves With Flow Divider, Var. 330391 � 332139 � 332140 � 332141 � 336391 / Commercial Feature 743526

1шт.

Three Remote Valves With Flow Divider, Var. 331391 � 332145 � 332146 / Commercial Feature 743527

1шт.

8

5195173

CABLE

675 mm, L/CAB

1шт.

Three Remote Valves With Flow Divider, Var. 330391 � 333391 / Commercial Feature 743526

1шт.

Three Remote Valves With Flow Divider, Var. 331391 � 334391 / 743527

1шт.

9

5188363

BLOCK

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

2шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

1шт.

13

10397580

INSULATING RING,16mm ID x 22mm Groove D x 29mm OD

16 x 2.5, W/CAB

1шт.

14

87736475

WIRE CONNECTOR,Male, 2 Cavities/Pins

1шт.
