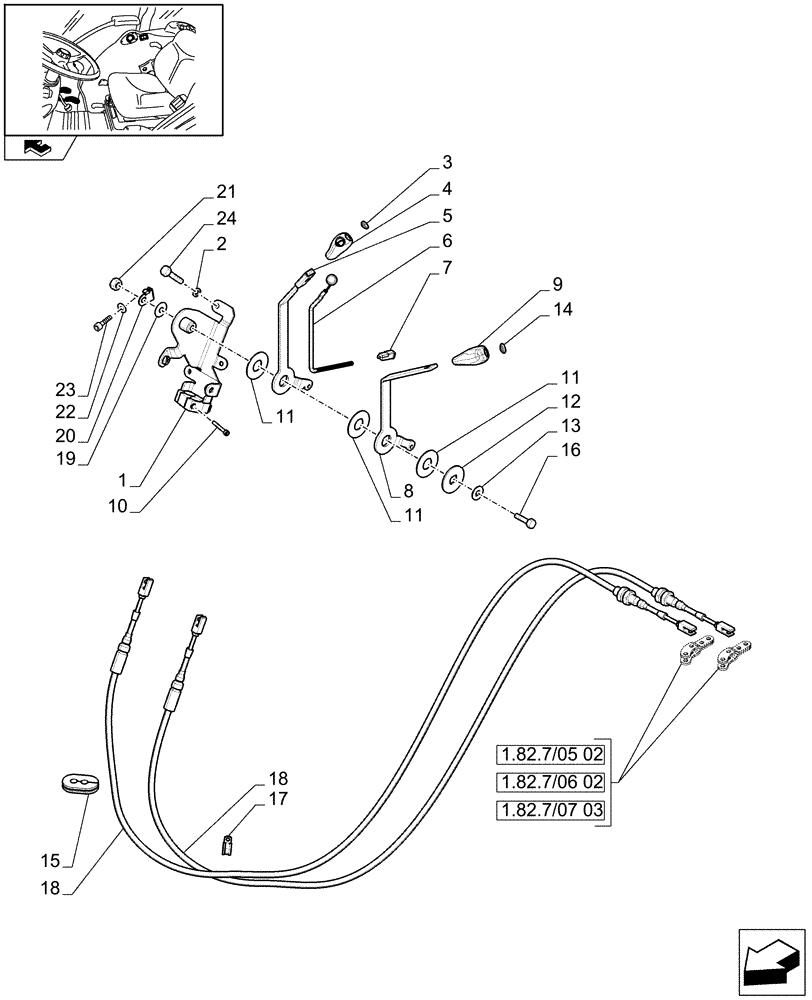

Запчасти Case IH FARMALL 105V (1.92.82/03[02]) - THREE REMOTE VALVES WITH FLOW DIVIDER - LEVER AND KNOB, W/ CAB (VAR. 330391 - 332139 - 332140 - 332141 - 336391 / 743526; VAR. 331391 - 332145 - 332146 / 743527) (10) - OPERATORS PLATFORM/CAB

1

84481963

BRACKET

1шт.

2

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

3шт.

3

47057200

IDEOGRAM

Shift Symbol 2

1шт.

4

84121634

KNOB

1шт.

5

84481975

LEVER

2nd Command Hand Distributor

1шт.

6

5192432

SWITCH

1шт.

7

12483580

MULTIPOLE CONNECTOR

1шт.

8

84481970

LEVER

1st Command Hand Distributor

1шт.

9

47056482

KNOB

1шт.

10

14358924

SCREW,Hex Soc Hd, M5 x 45, 8.8

1шт.

11

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.

12

5188905

WASHER,18mm ID x 50mm OD x 3 Thk

1шт.

13

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

14

47057199

IDEOGRAM

Shift Symbol 1

1шт.

15

84481972

GROMMET,2x12.8mm ID x 44mm L x 6mm Thk

1шт.

16

16054721

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

17

10115601

CLIP,10mm, Coat, P Type

1шт.

18

84481971

FLEXIBLE CABLE

2шт.

19

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

1шт.

20

47358995

PLATE

1шт.

21

83980600

THIN NUT,M10 x 1.25, Cl 8

1шт.

22

13550207

WASHER,6.15mm ID x 13mm OD x 1mm Thk

1шт.

23

14305387

HEX SOC SCREW,M6 x 20mm, Full Thd

1шт.

24

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

3шт.
