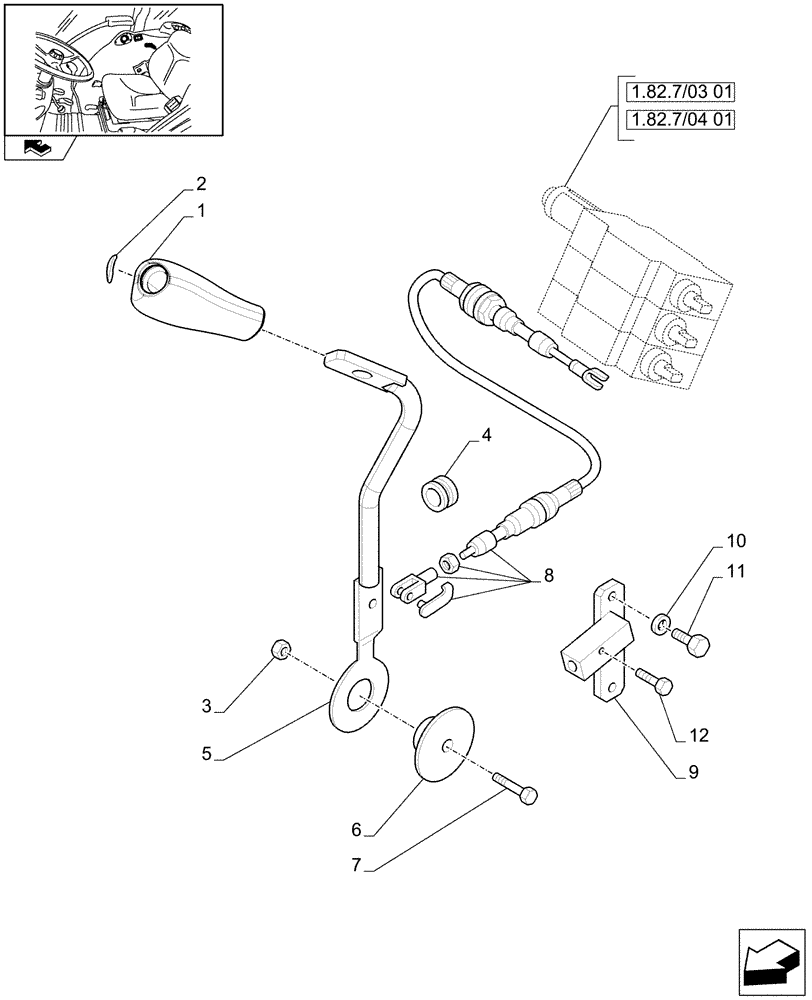

Запчасти Case IH FARMALL 105V (1.92.82/02[06]) - THREE REMOTE VALVES & FLOW-RATE REGULATOR , CONTROL LEVER (VAR. 330390 - 332137 - 332138 - 335390 / 743525) (10) - OPERATORS PLATFORM/CAB

1

87698499

KNOB

1шт.

2

87698516

DATA PLAQUE

Ginger, W/CAB

1шт.

Three Remote Valves And Flow-Rate Regulator, Var. 330390 - 332137 - 332138 - 335390 / Commercial Feature 743525

1шт.

2

47057201

IDEOGRAM

Shift Symbol 3, L/CAB

1шт.

Three Remote Valves And Flow-Rate Regulator, Var. 330390 / Commercial Feature 743525

1шт.

3

16102314

THIN NUT,M8 x 1.25, Cl 04

1шт.

4

10397580

INSULATING RING,16mm ID x 22mm Groove D x 29mm OD

16 x 2.5, W/CAB

1шт.

5

84494487

LEVER

W/CAB

1шт.

3rd Command Hand Distributor

1шт.

Three Remote Valves And Flow-Rate Regulator, Var. 330390 - 332137 - 332138 - 335390 / Commercial Feature 743525

1шт.

5

84494489

LEVER

L/CAB

1шт.

3rd Command Hand Distributor

1шт.

Three Remote Valves And Flow-Rate Regulator, Var. 330390 / Commercial Feature 743525

1шт.

6

47126539

SPACER,8.5mm ID x 50mm OD x 11mm L

W/CAB

1шт.

7

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

1шт.

8

5195173

CABLE

645 mm, W/CAB

1шт.

Three Remote Valves And Flow-Rate Regulator, Var. 330390 - 332137 - 332138 - 335390 / Commercial Feature 743525

1шт.

8

5199201

CABLE

645 mm, L/CAB

1шт.

Three Remote Valves And Flow-Rate Regulator, Var. 330390 / Commercial Feature 743525

1шт.

9

5188363

BLOCK

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

2шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

1шт.
