Запчасти Case IH FARMALL 105V (1.92.82/02[03]) - THREE REMOTE VALVES & FLOW-RATE REGULATOR FOR MDC - LEVER AND KNOB , WAD, W/O CAB (VAR. 330390 / 743525) (10) - OPERATORS PLATFORM/CAB

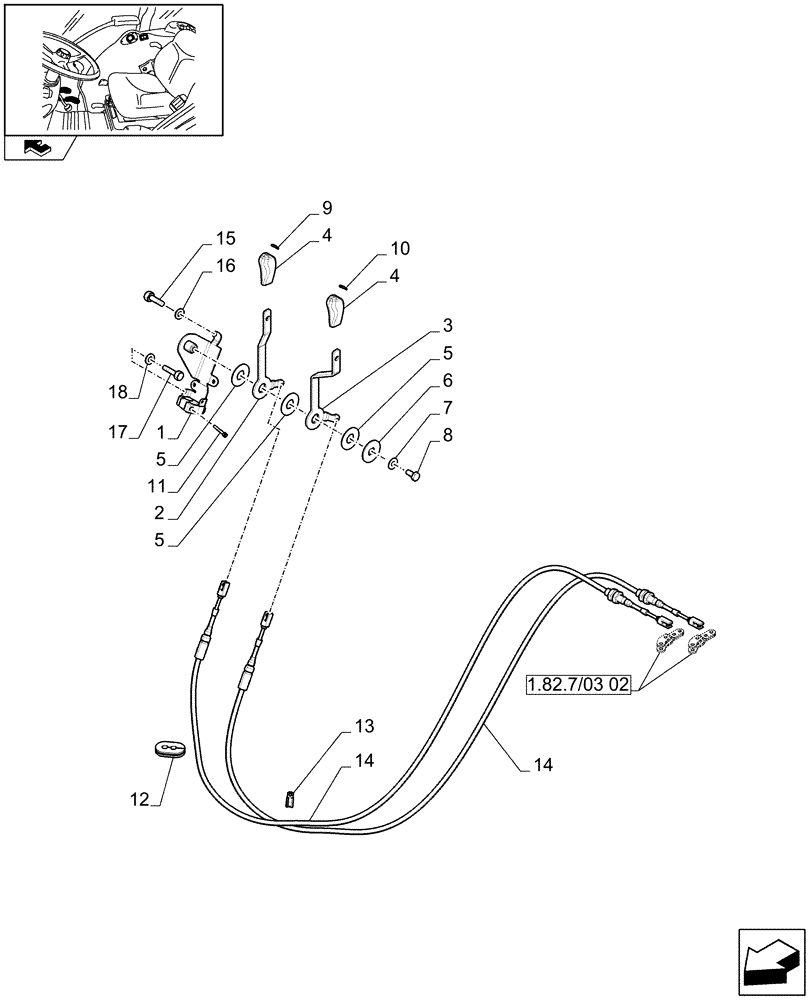

Схема запчастей Case IH FARMALL 105V - (1.92.82/02[03]) - THREE REMOTE VALVES & FLOW-RATE REGULATOR FOR MDC - LEVER AND KNOB , WAD, W/O CAB (VAR. 330390 / 743525) (10) - OPERATORS PLATFORM/CAB
8
1
16
18
13
5
11
5
5
2
12
3
14
6
17
10
9
4
4
home
14
1.82.7/03 02
15
7

Артикул

Название

Примечание

Количество

1

84481979

BRACKET

1шт.

2

84519054

LEVER

2nd Command Hand Distributor

1шт.

3

84519053

LEVER

1st Command Hand Distributor

1шт.

4

47056482

KNOB

2шт.

5

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.

6

5188905

WASHER,18mm ID x 50mm OD x 3 Thk

1шт.

7

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

8

5187364

BOLT,Hex, M10 x 1.25 x 22mm

1шт.

9

47057200

IDEOGRAM

Shift Symbol 2

1шт.

10

47057199

IDEOGRAM

Shift Symbol 1

1шт.

11

14358920

HEX SOC SCREW,M5 x 45mm, Cl 8.8, Full Thd

1шт.

12

84481972

GROMMET,2x12.8mm ID x 44mm L x 6mm Thk

1шт.

13

10115601

CLIP,10mm, Coat, P Type

1шт.

14

84481971

FLEXIBLE CABLE

2шт.

15

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

3шт.

16

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

3шт.

17

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

3шт.

18

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

Выбрано товаров: 18
