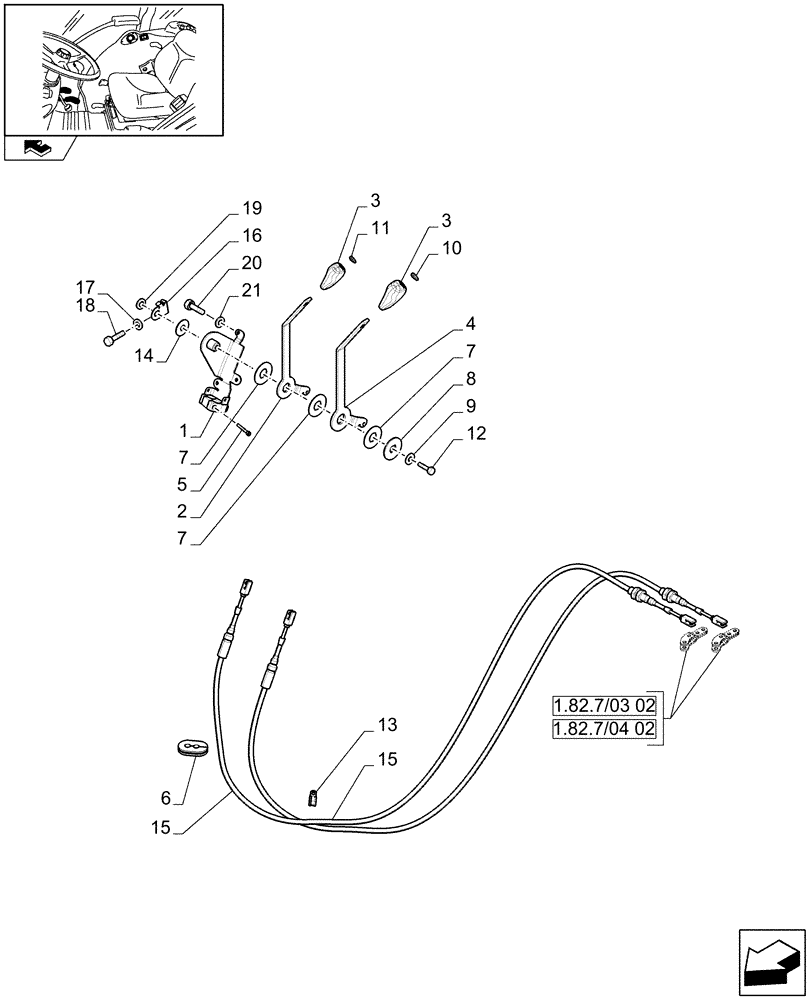

Запчасти Case IH FARMALL 105V (1.92.82/02[02]) - THREE REMOTE VALVES & FLOW-RATE REGULATOR - LEVER AND KNOB, W/ CAB VAR. 330390 - 332137 - 332138 - 335390 / 743525) (10) - OPERATORS PLATFORM/CAB

1

84481963

BRACKET

1шт.

2

84481969

LEVER

2nd Command Hand Distributor

1шт.

3

47056482

KNOB

2шт.

4

84481970

LEVER

1st Command Hand Distributor

1шт.

5

14358920

HEX SOC SCREW,M5 x 45mm, Cl 8.8, Full Thd

1шт.

6

84481972

GROMMET,2x12.8mm ID x 44mm L x 6mm Thk

1шт.

7

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.

8

5188905

WASHER,18mm ID x 50mm OD x 3 Thk

1шт.

9

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

10

47057199

IDEOGRAM

Shift Symbol 1

1шт.

11

47057200

IDEOGRAM

Shift Symbol 2

1шт.

12

16054721

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

13

10115601

CLIP,10mm, Coat, P Type

1шт.

14

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

1шт.

15

84481971

FLEXIBLE CABLE

2шт.

16

47358995

PLATE

1шт.

17

13550207

WASHER,6.15mm ID x 13mm OD x 1mm Thk

1шт.

18

14305387

HEX SOC SCREW,M6 x 20mm, Full Thd

1шт.

19

83980600

THIN NUT,M10 x 1.25, Cl 8

1шт.

20

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

3шт.

21

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

3шт.
