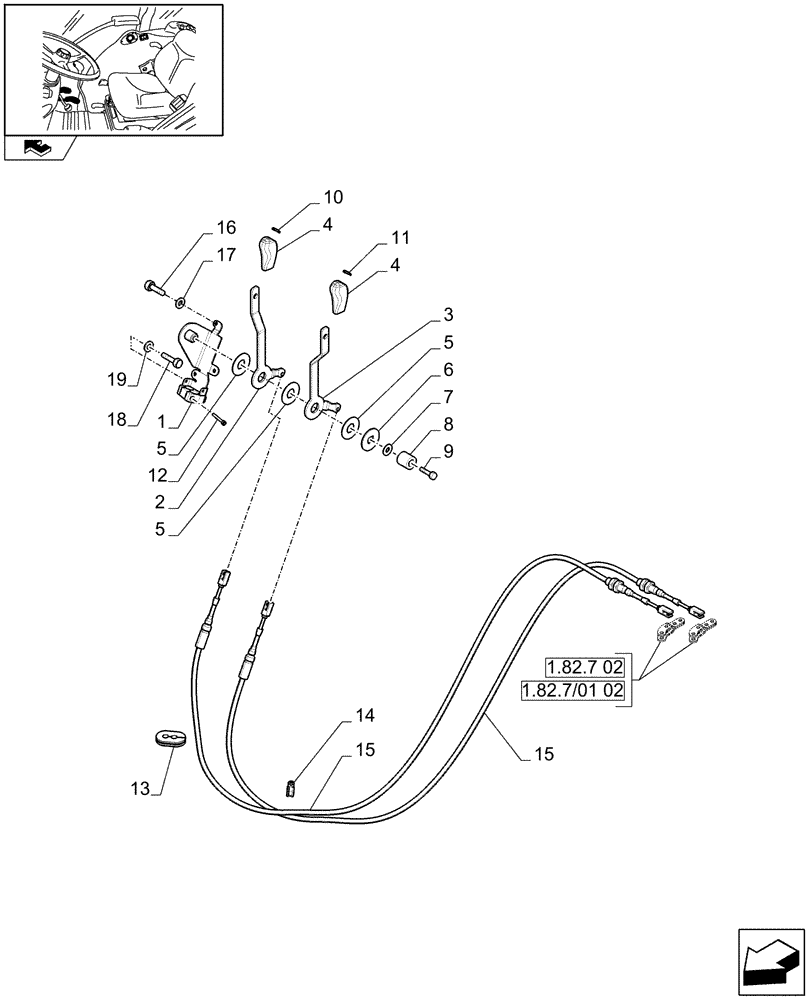

Запчасти Case IH FARMALL 105V (1.92.82/01[02]) - 2 REMOTE VALVES - LEVER AND KNOB (10) - OPERATORS PLATFORM/CAB

1

84481979

BRACKET

1шт.

2

84481982

LEVER

2nd Command Hand Distributor

1шт.

3

84481983

LEVER

1st Command Hand Distributor

1шт.

4

47056482

KNOB

2шт.

5

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.

6

5188905

WASHER,18mm ID x 50mm OD x 3 Thk

1шт.

7

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

8

47388716

SPACER,10.5mm ID x 26mm OD x 15mm L

1шт.

9

11234721

BOLT,Hex, M10 x 1.25 x 45, 8.8

1шт.

10

47057200

IDEOGRAM

Shift Symbol 2

1шт.

11

47057199

IDEOGRAM

Shift Symbol 1

1шт.

12

14358920

HEX SOC SCREW,M5 x 45mm, Cl 8.8, Full Thd

1шт.

13

84481972

GROMMET,2x12.8mm ID x 44mm L x 6mm Thk

1шт.

14

10115601

CLIP,10mm, Coat, P Type

1шт.

15

84481971

FLEXIBLE CABLE

2шт.

16

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

3шт.

17

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

3шт.

18

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

3шт.

19

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.
