Запчасти Case IH FARMALL 105V (1.92.754/03) - MAIN HARNESS WITHOUT MECHANICAL BATTERY ISOLATOR - W/CAB (VAR.334308-335308 / 743512; VAR.331308-332308-333308-338308) (10) - OPERATORS PLATFORM/CAB

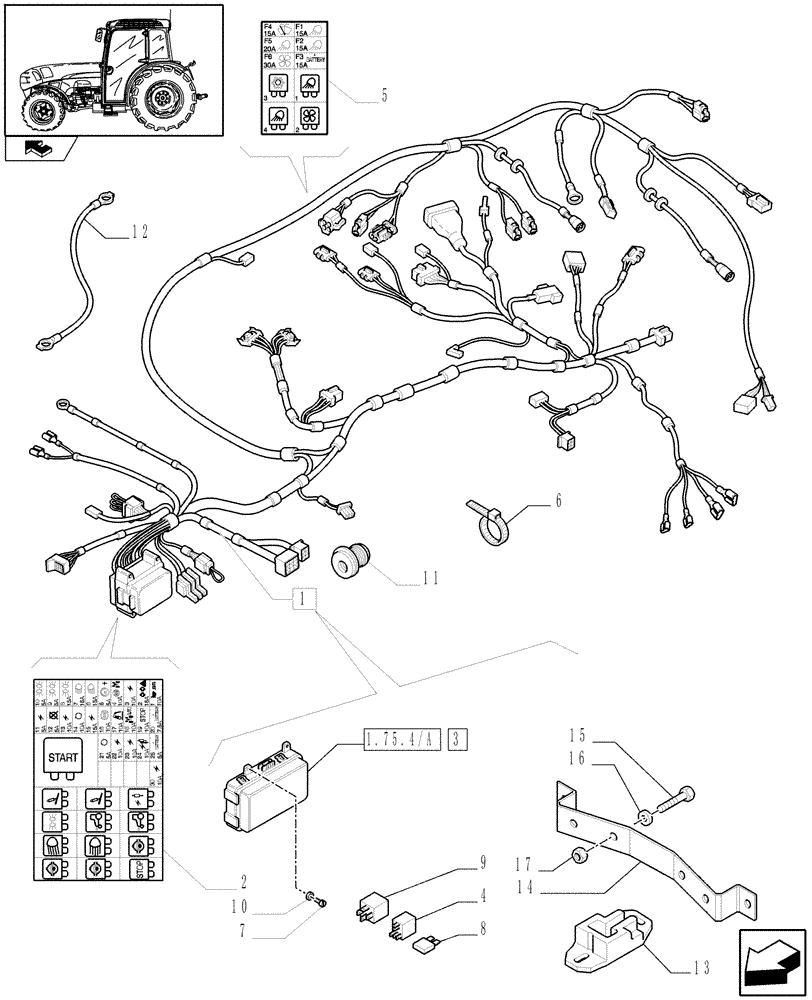

Схема запчастей Case IH FARMALL 105V - (1.92.754/03) - MAIN HARNESS WITHOUT MECHANICAL BATTERY ISOLATOR - W/CAB (VAR.334308-335308 / 743512; VAR.331308-332308-333308-338308) (10) - OPERATORS PLATFORM/CAB
12
4
9
1
10
14
13
5
8
1.75.4/a
6
16
home
7
11
2
17
15
3

Артикул

Название

Примечание

Количество

1

84489478

WIRE HARNESS

Main, Serial Range: -`0

1шт.

Less Electro-Hydr. Engag. (2WD) for Mech. Diff. Lock, VAR.338308

1шт.

1

84489481

WIRE HARNESS

Main, Serial Range: -`0

1шт.

Less Electro-Hydr. Engag. (2WD) for Hydr. Diff. Lock, VAR.331308

1шт.

1

87625169

ELECTRIC CABLE

Main, Serial Range: -`0

1шт.

With Electro-Hydr. 4WD Engag. for MDC and Standard Front Axle, VAR.332308,With Electro-Hydr. Engag. and Automatic 4WD and Diff. Lock for MDC and Standard Front Axle, VAR.334308

1шт.

1

84489550

WIRE HARNESS

Main, Serial Range: -`0

1шт.

With Electro-Hydr. 4WD Engag. for EDC and Standard Front Axle, VAR.333308,With Electro-Hydr. Engag. and Automatic 4WD and Diff. Lock for EDC and Standard Front Axle, VAR.335308

1шт.

2

84533576

LABEL

1шт.

3

5198692

FUSE HOLDER

1шт.

4

47127781

RELAY,12V, 20A, Micro, N.O.

NO, 20A

1шт.

4

47127782

RELAY,12V, 10A, Micro, N.C.

NC, 20A

1шт.

5

84553281

LABEL

1шт.

6

85805383

CABLE TIE

28шт.

7

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

4шт.

8

10395890

FUSE,5A, Mini, Beige

5A

1шт.

8

87522595

FUSE,7.5A, Mini, Brown

7.5A

1шт.

8

87522597

FUSE,10A, Mini, Red

10A

1шт.

8

87524877

FUSE,15A, Mini, Blue

15A

1шт.

8

10401190

FUSE,20A, Mini, Yellow

20A

1шт.

8

10401290

FUSE,25 amp Mini

25A

1шт.

8

10402190

FUSE,30A, Mini

30A

1шт.

9

83989947

RELAY,70A

70A

1шт.

10

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

11

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

12

87309787

ELECTRIC CABLE

Ground

1шт.

13

87543128

HOSE CLIP

2шт.

14

84146231

BRACKET

1шт.

15

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

16

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

4шт.

17

10725024

NUT

4шт.

Выбрано товаров: 31
