Запчасти Case IH FARMALL 105V (1.92.63/01[02]) - STEERING COLUMN (10) - OPERATORS PLATFORM/CAB

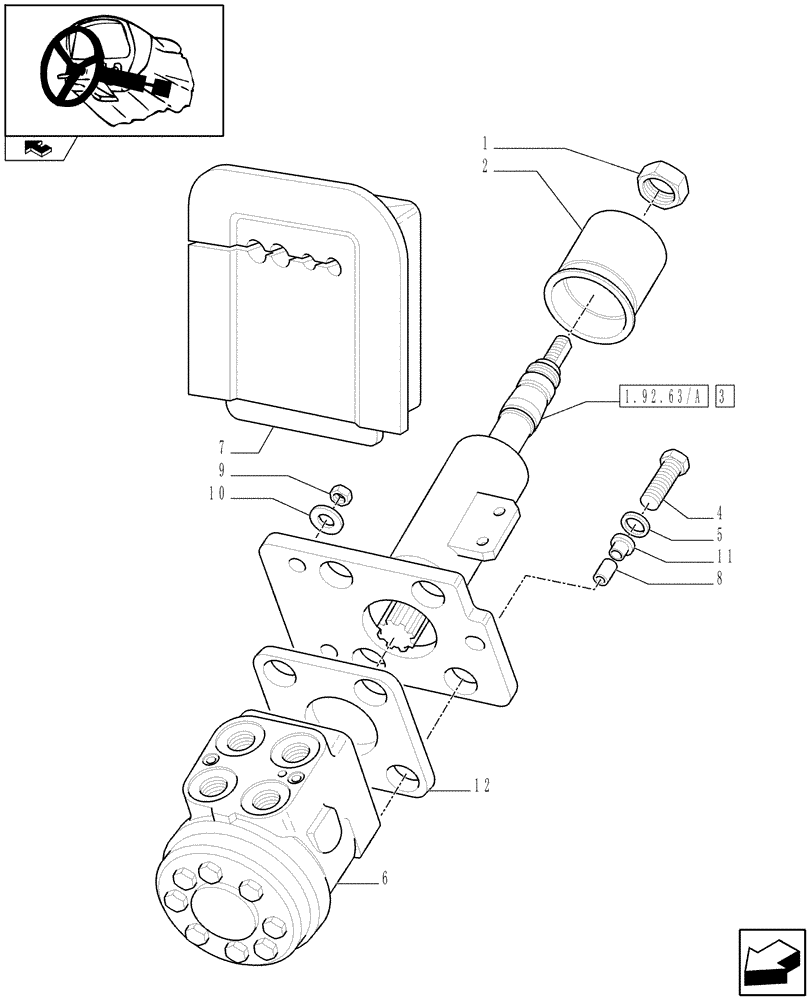

Схема запчастей Case IH FARMALL 105V - (1.92.63/01[02]) - STEERING COLUMN (10) - OPERATORS PLATFORM/CAB
6
1
10
12
home
8
1.92.63/a
4
5
3
2
7
11
9

Артикул

Название

Примечание

Количество

1

412624

THIN NUT,Hex, M18, 1.5mm Pitch, 9.00mm High, ZND

1шт.

2

87734117

SHIELD

1шт.

3

5186055

STEERING COLUMN

1шт.

4

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

5

12626224

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

6

5196527

HYDRAULIC STEERING

4WD, ASSY, Serial Range: -C6769

1шт.

6

5196525

HYDRAULIC STEERING,80CC, 170 Bar

2WD, ASSY, Serial Range: -`0

1шт.

2WD Standard Steering, VAR.335280-339280-337401-338401

1шт.

7

87388262

RUBBER PAD

1шт.

8

5197925

SPACER,10.1mm ID x 14mm OD x 20mm L

4шт.

9

43362

NUT,M8 x 1.25, Cl 10

3шт.

10

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

11

5197926

PLASTIC-RUBBER TUBE,14mm ID x 20mm OD x 16mm L

4шт.

12

5197927

SHIM,45mm ID x 82mm OD x 5mm Thk

1шт.

13

84266842

HYDRAULIC STEERING

, Start Serial: D6769

1шт.

Выбрано товаров: 15
