Запчасти Case IH FARMALL 105V (0.88.0/01[02]) - AIR CONDITIONING - PIPES AND RELATED PARTS (VAR.330641 / 743539; VAR.332641 / 743540) (01) - ENGINE

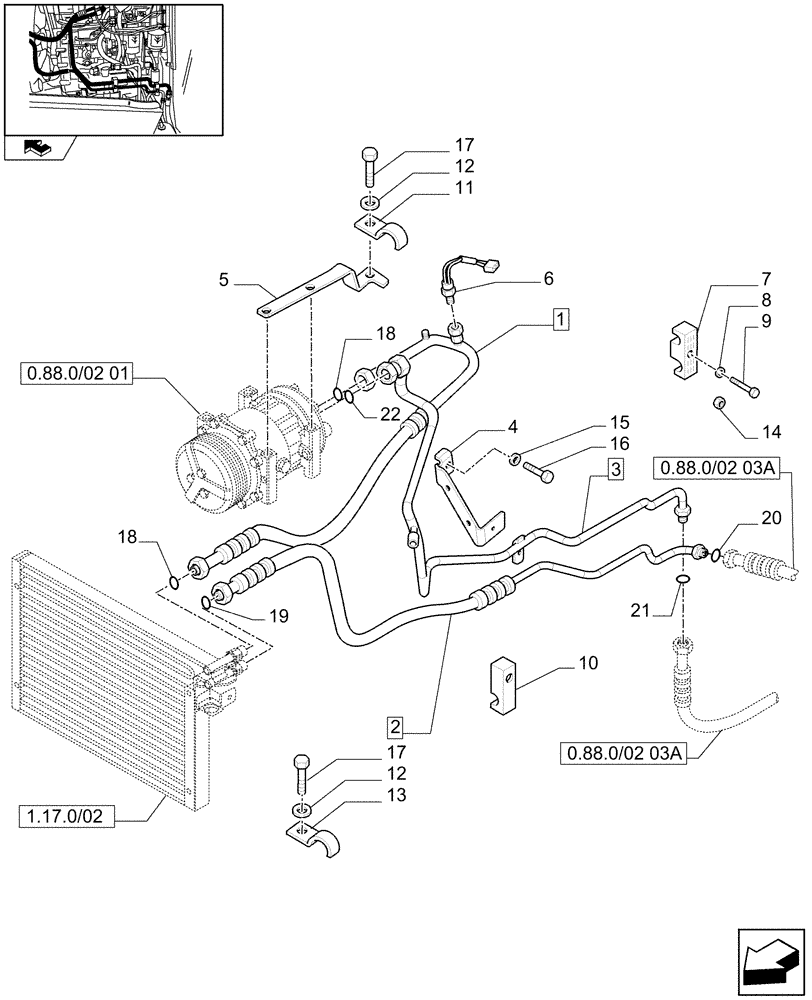

Схема запчастей Case IH FARMALL 105V - (0.88.0/01[02]) - AIR CONDITIONING - PIPES AND RELATED PARTS (VAR.330641 / 743539; VAR.332641 / 743540) (01) - ENGINE
3
14
18
12
15
17
19
1.17.0/02
0.88.0/02 03a
1
22
11
7
home
0.88.0/02 03a
6
17
2
13
5
21
18
9
8
12
16
20
0.88.0/02 01
10
4

Артикул

Название

Примечание

Количество

1

87718376

A/C HOSE

Assy, Incl 18

1шт.

2

84149328

FLEXIBLE HOSE

Assy, Incl 19, 20

1шт.

3

87718374

RIGID TUBE

Assy, Incl 21, 22

1шт.

4

87718378

BRACKET

1шт.

5

87718377

BRACKET

1шт.

6

87663969

PRESSURE SWITCH

1шт.

7

87571081

BRACKET

1шт.

8

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

9

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

1шт.

10

87326640

CLAMP,16mm ID

1шт.

11

10113301

RETAINER COLLAR,12mm, 7mm Bolt Hole, J Type

1шт.

12

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

13

10113201

RETAINER,10mm, 7mm Bolt Hole, J Type

1шт.

14

10720111

NUT,M6, Cl 8

1шт.

15

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

16

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

17

14305024

HEX SOC SCREW,M6 x 10mm, Cl 8.8, Full Thd

2шт.

18

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.

19

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

20

452005C1

O-RING

1шт.

21

452007C1

O-RING,29mm Thk x 12.7mm ID

1шт.

22

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

Выбрано товаров: 22
