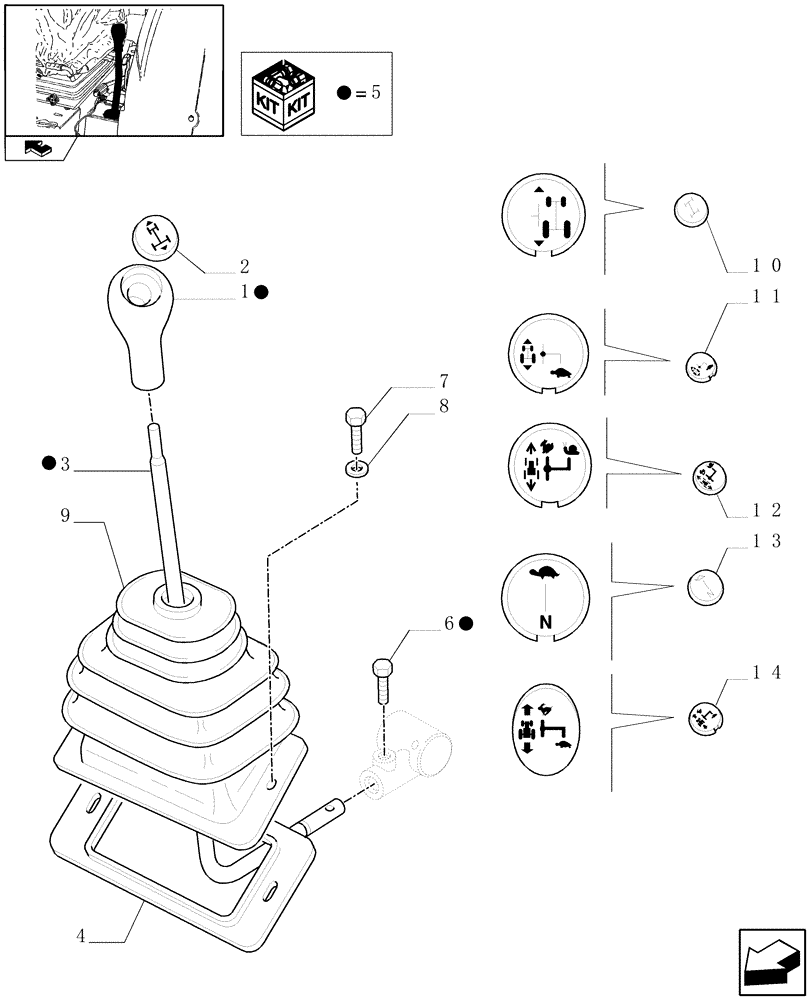

Запчасти Case IH FARMALL 105V (1.92.34[02]) - REVERSER CONTROL LEVER - W/CAB (10) - OPERATORS PLATFORM/CAB

1

47056637

KNOB

1шт.

2

47056545

IDEOGRAM

, Serial Range: -`0

1шт.

For Mechanical Transmission - ISO

1шт.

3

5188058

LEVER

65V, 85N, 95N

1шт.

3

5188993

LEVER

75N, 85, 95N

1шт.

4

5188429

CAPPING

4 mm

1шт.

4

5190510

FRAME

7 mm

1шт.

5

47129639

HOOK

75N, 85N, 95N

1шт.

5

47129651

LEVER

65V, 75V, 85V, 95V

1шт.

5

47129635

LEVER

ASSY, Incl 1, 3, 6, Serial Range: -`0

1шт.

Creeper 44 x 16 for HI-LO and Power Shuttle, VAR.335111

1шт.

6

44013453

SCREW,Hex, M12 x 1.25 x 33mm

1шт.

7

13283714

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd, Cone Pt

2шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

For Splitter

2шт.

9

87528777

BELLOWS

1шт.

10

5178229

CUP COVER

75N, 85N, 95N, Serial Range: -`0

1шт.

For Mechanical Transmission - NA

1шт.

11

5172668

CUP COVER

, Serial Range: -`0

1шт.

For Splitter

1шт.

12

47056544

IDEOGRAM

, Serial Range: -`0

1шт.

Creeper 28 x 16 for 16 x 16 Mechanical Transmission - ISO, VAR.330111

1шт.

13

47056543

DECAL

, Serial Range: -`0

1шт.

Creeper 44 x 16 for HI-LO and Power Shuttle, VAR.335111

1шт.

14

47056543

DECAL

, Serial Range: -`0

1шт.

For Splitter

1шт.
