(1.92.29/05[01]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - SHIFTING CONTROLS - END YR 25-JUN-2012 (VAR.332157; 332158 / 743508; 332159; 332160 / 743509)

Запчасти Case IH FARMALL 105V (1.92.29/05[01]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - SHIFTING CONTROLS - END YR 25-JUN-2012 (VAR.332157; 332158 / 743508; 332159; 332160 / 743509) (10) - OPERATORS PLATFORM/CAB

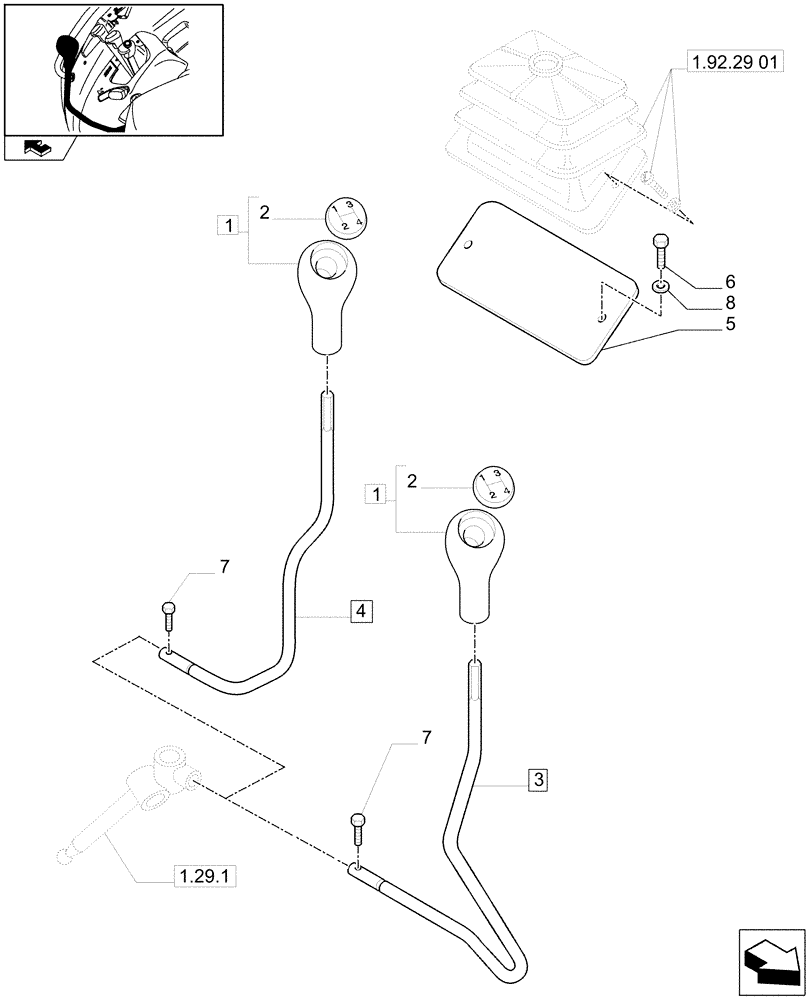

Схема запчастей Case IH FARMALL 105V - (1.92.29/05[01]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - SHIFTING CONTROLS - END YR 25-JUN-2012 (VAR.332157; 332158 / 743508; 332159; 332160 / 743509) (10) - OPERATORS PLATFORM/CAB
1
7
4
1.29.1
1
home
8
1.92.29 01
5
2
7
6
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47056480

KNOB

ASSY, Incl. 2

1шт.

2

47056542

IDEOGRAM

1шт.

3

47129629

LEVER

Incl. 1, 7, 105N, L/CAB

1шт.

4

87376736

LEVER

Incl. 1, 7, 105V, L/CAB

1шт.

5

5195262

PLATE

7mm High

1шт.

6

13283714

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd, Cone Pt

2шт.

7

44013453

SCREW,Hex, M12 x 1.25 x 33mm

M12x28

1шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.
