(1.92.29/03[02]) - 32X16 HI-LO AND POWER SHUTTLE TRASMISSION WITH POWER CLUTCH - W/CAB - END YR 25-JUN-2012 (VAR.330273)

Запчасти Case IH FARMALL 105V (1.92.29/03[02]) - 32X16 HI-LO AND POWER SHUTTLE TRASMISSION WITH POWER CLUTCH - W/CAB - END YR 25-JUN-2012 (VAR.330273) (10) - OPERATORS PLATFORM/CAB

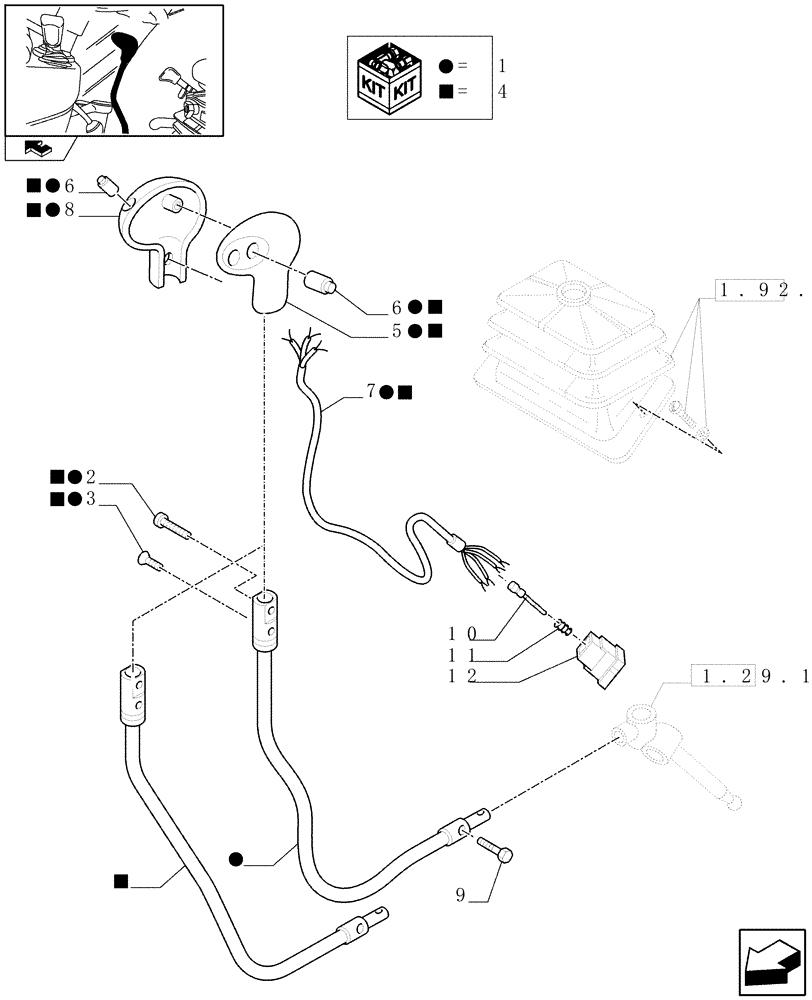

Схема запчастей Case IH FARMALL 105V - (1.92.29/03[02]) - 32X16 HI-LO AND POWER SHUTTLE TRASMISSION WITH POWER CLUTCH - W/CAB - END YR 25-JUN-2012 (VAR.330273) (10) - OPERATORS PLATFORM/CAB
10
4
home
8
9
4
4
1
1
2
7
5
1
1.29.1
4
6
4
11
12
4
4
1
4
1
1.92.29
3
4
1
6
1
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87471697

LEVER

ASSY, Incl 2, 3, 5-8, 65V, 75V, 85V, 95V

1шт.

2

13274877

SCREW,Phil Pan Hd, M5 x 30mm, SST

1шт.

3

13310777

SCREW,Pozidriv Oval Hd, Csk, M5 x 10mm, Full Thd, SST

1шт.

4

87471688

LEVER

ASSY, Incl 2, 3, 5-8,75N, 85N, 95N

1шт.

5

82006429

KNOB

Half, LH

1шт.

6

87398154

SWITCH

HI-LO

3шт.

7

87520251

WIRE HARNESS

1шт.

8

87358400

KNOB

RH

1шт.

9

44013453

SCREW,Hex, M12 x 1.25 x 33mm

L/CAB

1шт.

10

12451844

TERMINAL CONNECTOR,Male, 0.3 - 0.6 mm2

4шт.

11

12452283

GASKET

4шт.

12

12453387

MULTIPOLE CONNECTOR

1шт.
