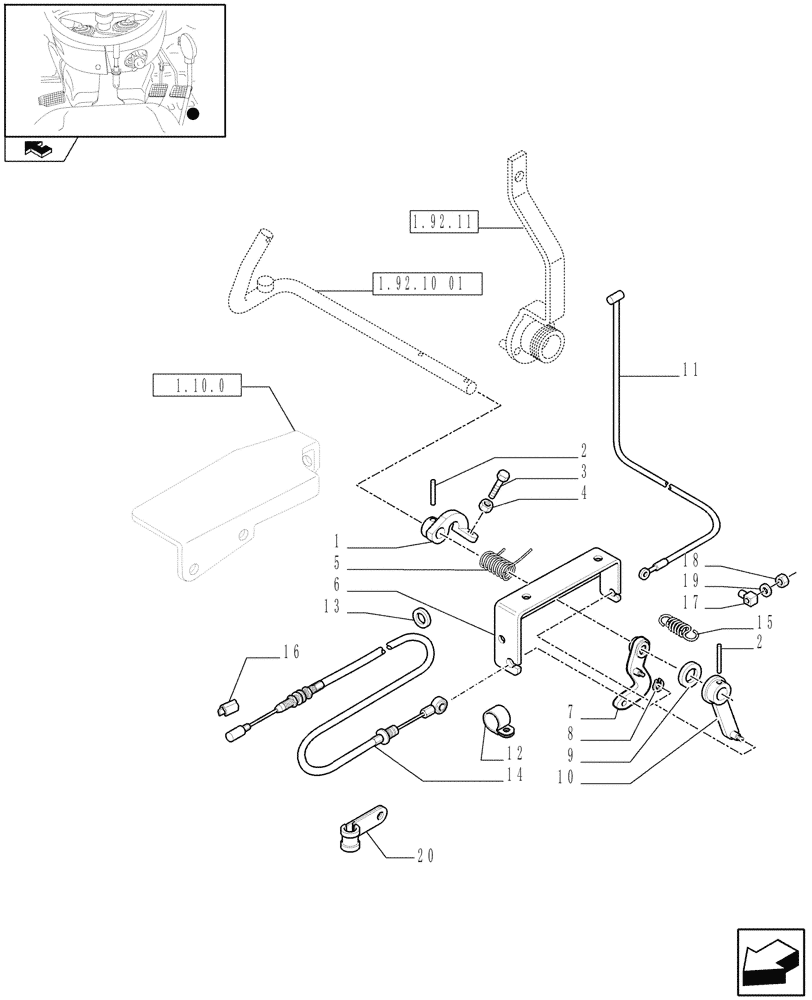

Запчасти Case IH FARMALL 105V (1.92.10[02]) - ACCELERATOR PEDAL, FLEXIBLE CONTROLS AND TRANSMISSION LEVER (10) - OPERATORS PLATFORM/CAB

1

5176533

LEVER

1шт.

2

13938070

ROLL PIN,M4 x 24mm OAL, Coiled

2шт.

3

15213024

SCREW,Hex, M6 x 55mm, Cl 8.8

1шт.

4

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

5

5172853

SPRING

1шт.

6

5192293

SUPPORT

1шт.

7

47123306

LEVER

1шт.

8

11063876

SPRING CLIP,M5 x 4mm

2шт.

9

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

10

87479688

LEVER

1шт.

11

5188227

CABLE,770mm L

1шт.

12

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

1шт.

13

87016950

SNAP RING,M7, Ext

1шт.

14

87515835

CABLE,1628mm L

65V, 75V, 75N, 85V, 85N

1шт.

14

84407530

FLEXIBLE CONTROL

1шт.

15

5188224

SPRING

1шт.

16

47134319

CLIP,7.8mm ID x 12.7mm L

95V, 95N

1шт.

17

5171693

CLAMP

65V, 75V, 75N, 85N, 85V, 85N

1шт.

18

15896214

NUT,M6, Cl 8

65V, 75V, 75N, 85N, 85V, 85N

2шт.

19

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

65V, 75V, 75N, 85N, 85V, 85N

2шт.

20

87723751

LOCKING RING

95V, 95N

1шт.
