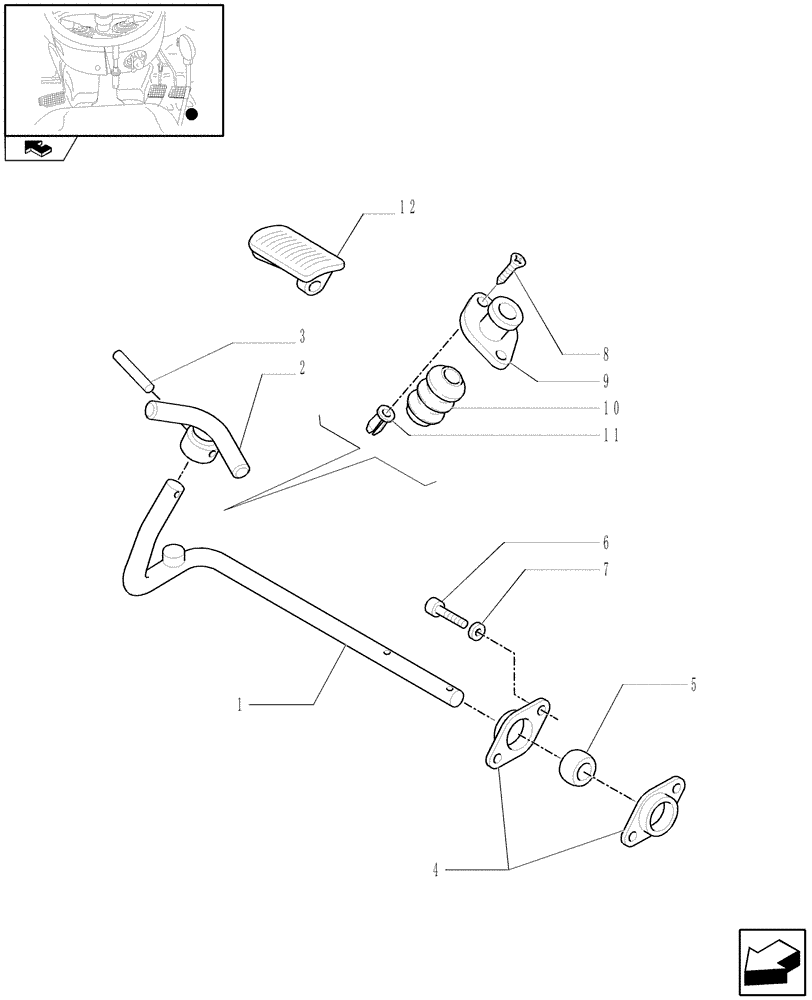

Запчасти Case IH FARMALL 105V (1.92.10[01]) - ACCELERATOR PEDAL (10) - OPERATORS PLATFORM/CAB

1

84122148

LEVER

1шт.

2

47057588

PEDAL

Orange

1шт.

3

13938070

ROLL PIN,M4 x 24mm OAL, Coiled

1шт.

4

5156494

FLANGE

2шт.

5

5176160

BUSHING

1шт.

6

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

7

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

2шт.

8

5182260

SELF-TAP SCREW,M5 x 16mm L

2шт.

9

5181227

CIRCLIP

1шт.

10

5128714

BOOT

1шт.

11

14115780

BLOCK

2шт.

12

84250071

PEDAL

1шт.
