Запчасти Case IH FARMALL 105V (1.90.5[02]) - SET OF TOOLS (10) - OPERATORS PLATFORM/CAB

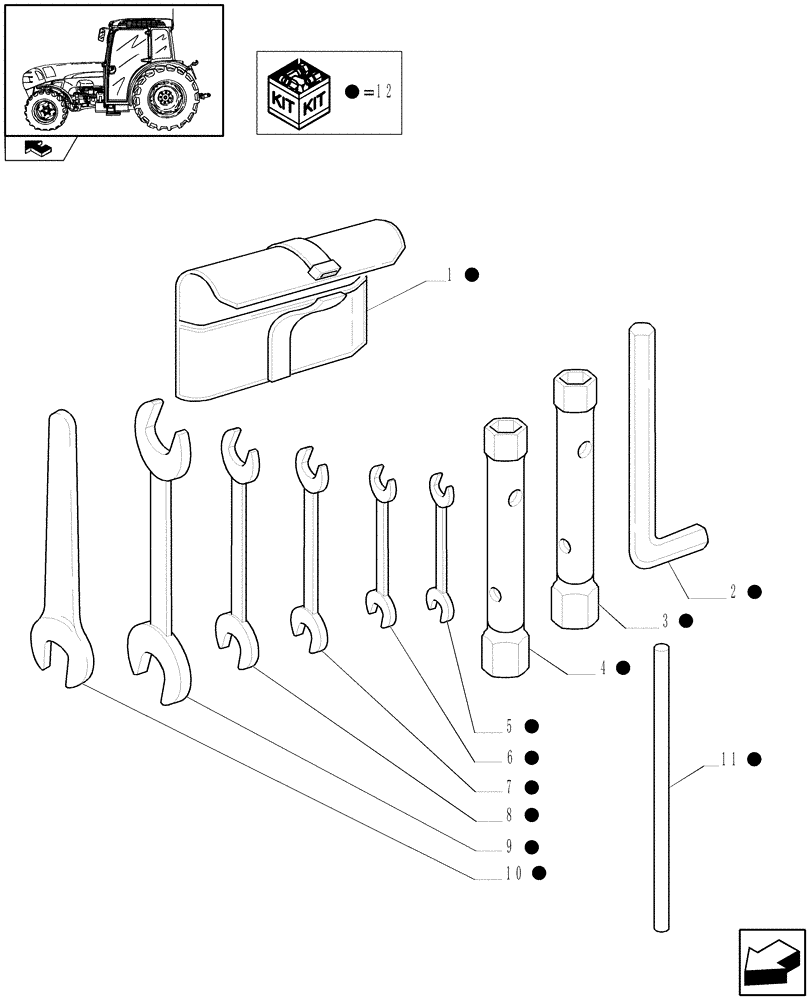

Схема запчастей Case IH FARMALL 105V - (1.90.5[02]) - SET OF TOOLS (10) - OPERATORS PLATFORM/CAB
12
10
12
7
12
12
4
8
12
12
home
2
6
12
11
12
5
12
9
12
3
12
12
1
12

Артикул

Название

Примечание

Количество

1

4960158

TOOL BAG

1шт.

2

5121429

SPECIAL WRENCH,12mm

12MM

1шт.

3

5121423

SOCKET WRENCH,24mm - 27mm

24MM / 27MM

1шт.

4

5121422

SOCKET WRENCH,22mm - 24mm

22MM/ 24MM

1шт.

5

5121417

OPEN END WRENCH,6mm - 7mm

6 x 7MM

1шт.

6

5121418

OPEN END WRENCH,10mm - 13mm

10 x 13MM

1шт.

7

5121419

OPEN END WRENCH,11mm - 14mm

11 x 14MM

1шт.

8

5121420

OPEN END WRENCH,17mm - 19mm

17 x 19MM

1шт.

9

5121421

OPEN END WRENCH,22mm - 24mm

22 x 24MM

1шт.

10

5121426

OPEN END WRENCH,27mm

27MM

1шт.

11

5121440

PIN,12mm OD x 290mm L

1шт.

12

5121428

BAG W/TOOL KIT

Kit

1шт.

Выбрано товаров: 12
