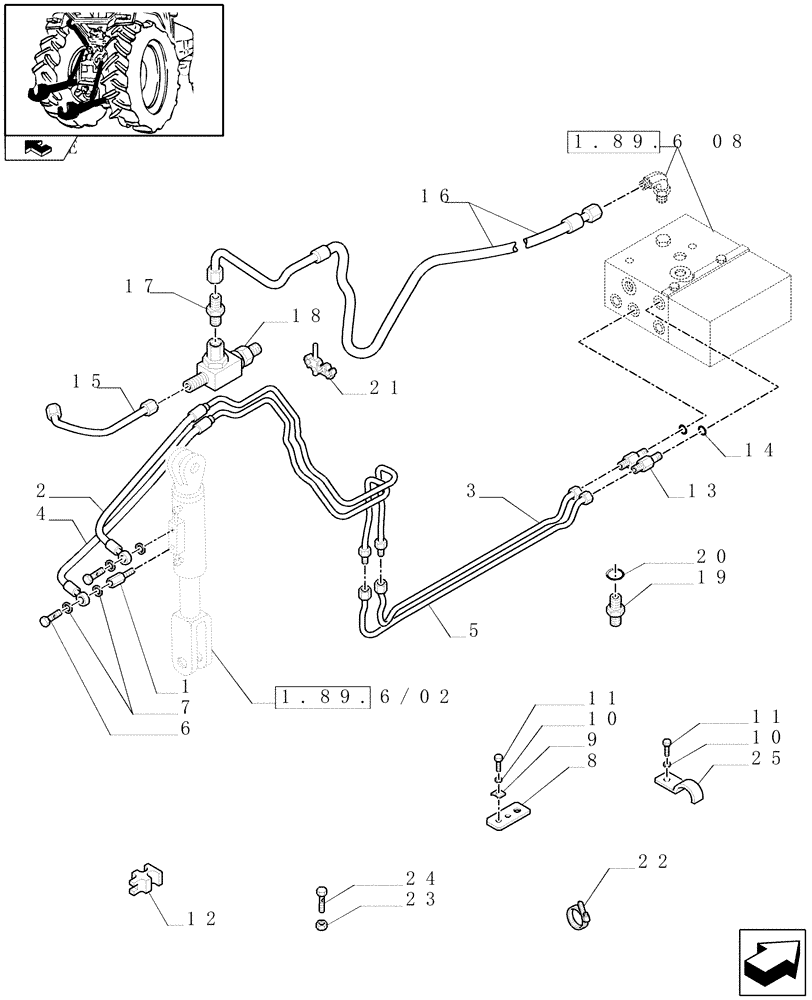

Запчасти Case IH FARMALL 105V (1.89.6[07]) - HYDRAULIC RIGHT LIFTING ROD FOR EDC - TIE-ROD, PIPES AND CONNECTIONS - W/CAB (09) - IMPLEMENT LIFT

1

5179492

PROP,3/8"

1шт.

2

84317272

RIGID TUBE

1шт.

3

87624481

RIGID TUBE,8 mm OD

1шт.

4

84317273

HYD TUBE

1шт.

5

87624487

RIGID TUBE,8 mm OD

1шт.

6

5179496

BANJO BOLT,Hex, M9 x 39mm

2шт.

7

84185636

SEAL,14.76mm ID x 23.8mm OD x 3mm Thk

5шт.

8

87727679

BRACKET

1шт.

9

5161207

RETAINER COLLAR,7mm ID x 23mm L

3шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

12

87479465

SPACER,4-R4, 25mm L x 13mm L

2шт.

13

5158810

HYD CONNECTOR,M12 x 1.5

2шт.

14

14437685

O-RING,9.30mm ID x 2.40mm

2шт.

15

87731818

RIGID TUBE

1шт.

16

87624489

RIGID TUBE,6 mm OD

1шт.

17

79077083

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

1шт.

18

87727683

HYD CONNECTOR,M12 x 1.5 x 65mm L

1шт.

19

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

1шт.

20

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

21

14504387

CLIP

3/8", Black

2шт.

22

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

1шт.

23

15896214

NUT,M6, Cl 8

1шт.

24

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

25

10113201

RETAINER,10mm, 7mm Bolt Hole, J Type

1шт.
