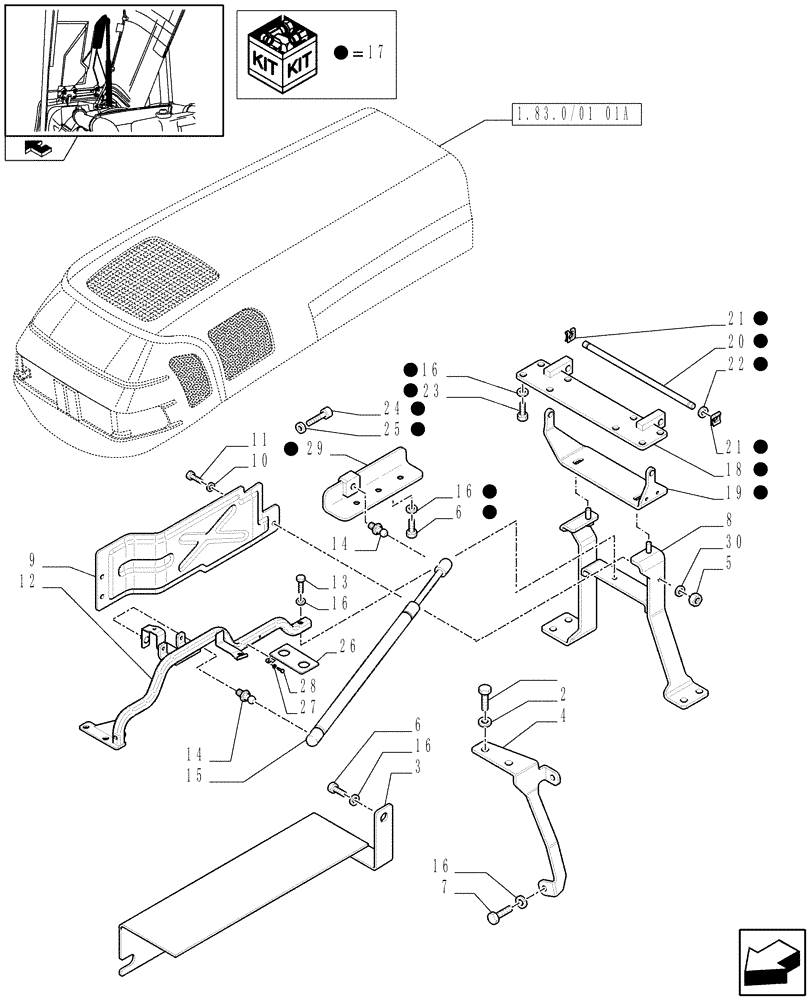

Запчасти Case IH FARMALL 105V (1.83.0/01[06]) - HOOD GAS SPRING, HINGE SUPPORT AND HEAT SHIELD PROTECTION (08) - SHEET METAL

1

11112531

BOLT,Hex, M12 x 32mm, Cl 10.9, Full Thd

2шт.

2

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

3

84161730

HEAT SHIELD

1шт.

4

87633893

BRACKET

LH

1шт.

5

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

6

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

7

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

8

84468277

BRACKET

, Serial Range: -`0

1шт.

P.N. 84468277 must be Associate with P.N.84468190

1шт.

9

87737373

GUARD

1шт.

10

14498821

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

4шт.

11

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

12

84164155

SUPPORT

1шт.

13

16043314

3шт.

14

87603835

BALL STUD,10mm D, M8 x 13mm

2шт.

15

87489635

SHOCK ABSORBER

1шт.

16

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

17

84291094

COWLING

See also Pages 01, 02, ASSY, Incl 6, 16, 18-25, 29

1шт.

18

84164104

HINGE

1шт.

19

84468190

BRACKET

, Serial Range: -`0

1шт.

P.N. 84468190 must be Associate with P.N. 84468277

1шт.

20

87689078

PIN

1шт.

21

11064071

CLIP,M8 x 6 x 0.94mm

2шт.

22

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

23

16043514

SCREW,Hex, M8 x 22mm, Cl 5.8

8шт.

24

5113531

SCREW,M4 x 10mm, Cl 8.8

4шт.

25

14497731

WASHER,4.3mm ID x 8mm OD x 0.8mm Thk

4шт.

26

84169277

BRACKET

1шт.

27

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

28

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

29

84209441

BRACKET

1шт.

30

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.
