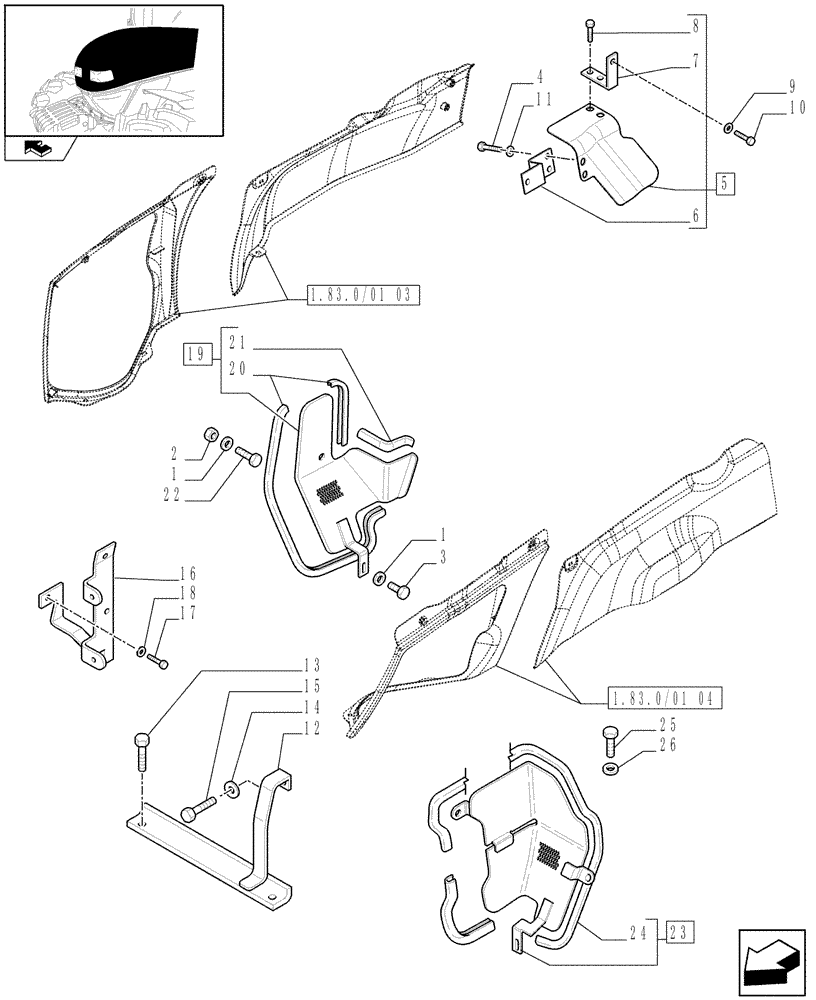

Запчасти Case IH FARMALL 105V (1.83.0/01[05]) - HOOD BRACKETS AND HEAT PROTECTIONS (08) - SHEET METAL

1

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

3шт.

2

15896224

NUT,Hex, M6

1шт.

3

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

4

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

1шт.

5

87737210

GUARD

ASSY, Incl 6-8

1шт.

6

87737212

GUARD

1шт.

7

87737211

GUARD

1шт.

8

14778714

SCREW,Cross Rec Cheese Hd, M6 x 10mm, Cl 5.8

4шт.

9

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

11

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

12

87732129

BRACKET

1шт.

13

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

2шт.

14

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

15

10902724

SCREW,Hex, M6 x 28mm, Cl 8.8, Full Thd

1шт.

16

87633894

BRACKET

RH

1шт.

17

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

18

11198574

BELLEVILLE WASHER,Belleville, M10.5

1шт.

19

84215181

GRILLE

ASSY, Incl 20, 21

1шт.

20

5150790

GASKET

1шт.

21

5150785

GASKET

1шт.

22

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

23

84127551

GRILLE

ASSY, Incl 24

1шт.

24

84135795

SEAL

1шт.

25

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

26

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.
