(1.82.7/15) - ELECTRONICALLY-CONTROLLED LIFT - PIPES

Запчасти Case IH FARMALL 105V (1.82.7/15) - ELECTRONICALLY-CONTROLLED LIFT - PIPES (07) - HYDRAULIC SYSTEM

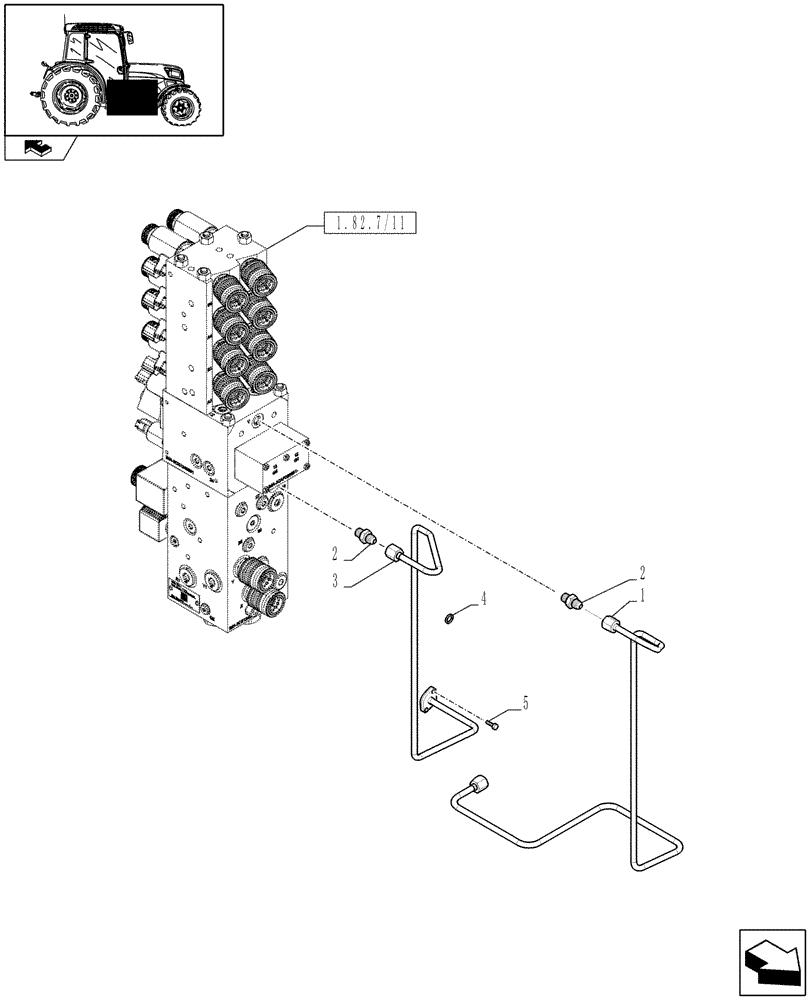

Схема запчастей Case IH FARMALL 105V - (1.82.7/15) - ELECTRONICALLY-CONTROLLED LIFT - PIPES (07) - HYDRAULIC SYSTEM
4
1.82.7/11
home
5
2
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84549382

TUBE

1шт.

2

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

2шт.

3

84549378

TUBE

1шт.

4

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

1шт.

5

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 5
