(1.82.7/07[02]) - 3 REMOTE VALVES FOR ELECTRONIC LIFTER W/HYD. DIVIDER - PIPES - EDC (VAR. 332141 - 336391 / 743526)

Запчасти Case IH FARMALL 105V (1.82.7/07[02]) - 3 REMOTE VALVES FOR ELECTRONIC LIFTER W/HYD. DIVIDER - PIPES - EDC (VAR. 332141 - 336391 / 743526) (07) - HYDRAULIC SYSTEM

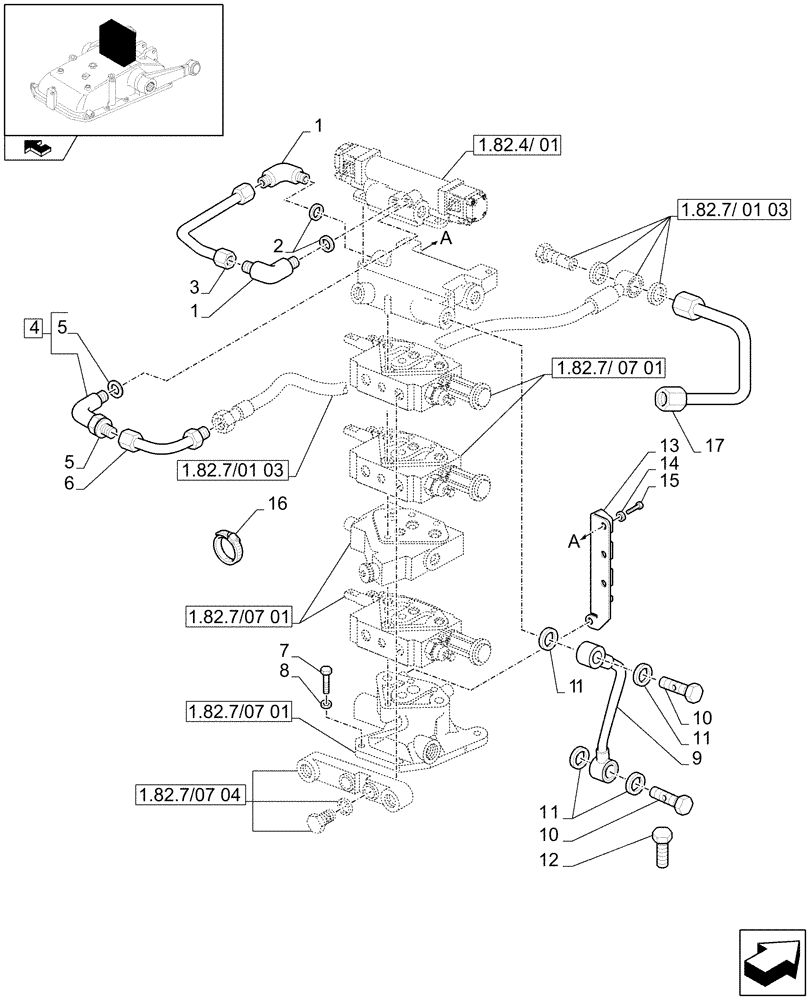

Схема запчастей Case IH FARMALL 105V - (1.82.7/07[02]) - 3 REMOTE VALVES FOR ELECTRONIC LIFTER W/HYD. DIVIDER - PIPES - EDC (VAR. 332141 - 336391 / 743526) (07) - HYDRAULIC SYSTEM
1
1.82.7/ 01 03
10
3
4
14
11
a
12
2
1.82.7/07 01
1.82.7/07 04
10
5
1.82.7/01 03
16
1
1.82.4/ 01
6
11
1.82.7/07 01
a
home
17
7
11
5
9
15
1.82.7/ 07 01
13
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

2шт.

2

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3шт.

3

5174040

RIGID TUBE

Load Sensor

1шт.

4

5166932

90 ELBOW,1/2-20 UNF, M12 x 1.5

1шт.

5

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

6

47131635

RIGID TUBE

1шт.

7

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

9

5188501

RIGID TUBE

Unload

1шт.

10

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18

2шт.

11

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

12

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

13

5179944

CONSOLE

1шт.

14

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

15

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

17

5179217

RIGID TUBE

Discharge to Unload

1шт.
