(1.82.7/04[02]) - THREE REMOTE VALVES & FLOW-RATE REGULATOR FOR EDC - PIPES AND RINGS (VAR.335390 / 743525)

Запчасти Case IH FARMALL 105V (1.82.7/04[02]) - THREE REMOTE VALVES & FLOW-RATE REGULATOR FOR EDC - PIPES AND RINGS (VAR.335390 / 743525) (07) - HYDRAULIC SYSTEM

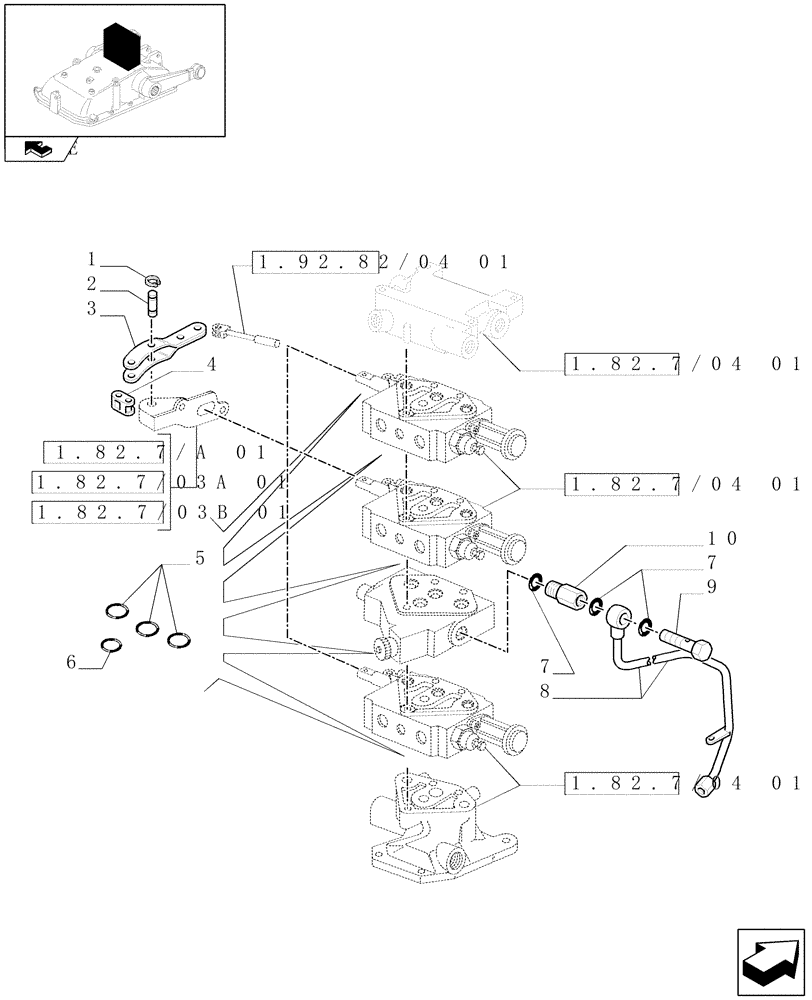

Схема запчастей Case IH FARMALL 105V - (1.82.7/04[02]) - THREE REMOTE VALVES & FLOW-RATE REGULATOR FOR EDC - PIPES AND RINGS (VAR.335390 / 743525) (07) - HYDRAULIC SYSTEM
5
3
7
1.92.82/04 01
home
4
1
9
1.82.7/03a 01
7
1.82.7/03b 01
1.82.7/04 01
6
1.82.7/a 01
8
1.82.7/04 01
10
1.82.7/04 01
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11087776

CIRCLIP,Ext., M6, BLO

3шт.

2

5172456

PIN,6mm OD x 20mm L

3шт.

3

5178877

CLEVIS

3шт.

4

5116896

LINK,19.05mm Pitch

3шт.

5

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

19 x 3.50 x 3

15шт.

6

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

DIA=19.2 mm

5шт.

7

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22

3шт.

8

5186139

RIGID TUBE

1шт.

9

5182095

BANJO BOLT,M22 x 1.5 x 47mm

1шт.

10

5188525

REDUCER,M22 x 1.5 x M22 x 1.5

1шт.

Выбрано товаров: 10
