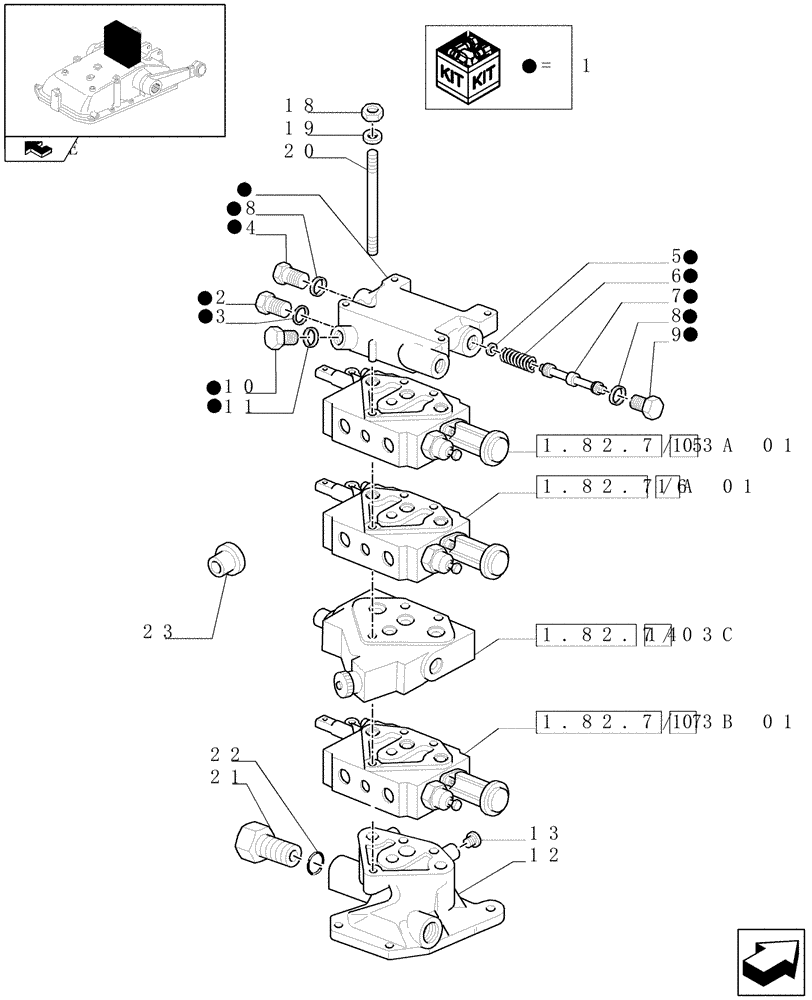

Запчасти Case IH FARMALL 105V (1.82.7/04[01]) - THREE REMOTE VALVES & FLOW-RATE REGULATOR FOR EDC - VALVE AND FLANGE (VAR.335390 / 743525) (07) - HYDRAULIC SYSTEM

1

87374218

FLANGE

ASSY, Incl 2-11

1шт.

2

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

4

5173857

PLUG,Hex, M27 x 2

1шт.

5

5167122

VALVE

1шт.

6

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

7

83999793

HYDRAULIC VALVE

1шт.

8

14438185

O-RING,24mm ID x 3mm

2шт.

9

5167123

PLUG,7/16" - 20

1шт.

10

83957506

PLUG,3/4"

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

5176480

FLANGE

1шт.

13

10269601

PLUG,M16 x 1.5

1шт.

14

87397107

CONTROL VALVE

1шт.

15

87396859

CONTROL VALVE

1шт.

16

87396877

CONTROL VALVE

S/D W/Autom.Kick-Out & Float

1шт.

17

87396881

CONTROL VALVE

S/D W/Autom.Kick-Out

1шт.

18

5116857

NUT,3/8" - 24

6шт.

19

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

20

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

21

10305911

PLUG,M22 x 1.5 x 27

1шт.

22

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

1шт.

23

5182438

PLUG,14mm ID x 19mm OD x 12mm Thk

2шт.
