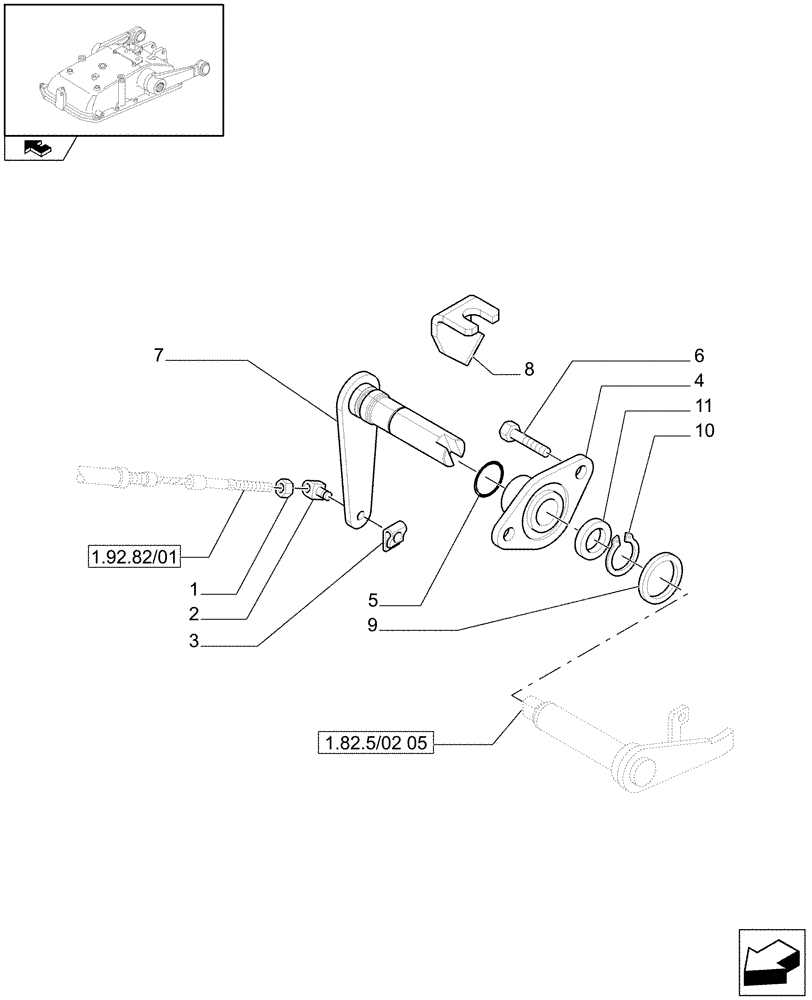

Запчасти Case IH FARMALL 105V (1.82.5/02[06]) - HYDRAULIC LIFT OUTER AND INNER CONTROLS (VAR.334565-334578 / 744833) (07) - HYDRAULIC SYSTEM

1

12574215

NUT,M6 x 1, Cl 8

1шт.

2

5138330

PIN,5mm OD x 17.5mm L

1шт.

3

11063876

SPRING CLIP,M5 x 4mm

1шт.

4

5176916

SUPPORT

1шт.

5

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

6

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

7

47463035

LEVER

1шт.

8

47490268

BRACKET

1шт.

9

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

10

300625

SNAP RING,M16, Ext

1шт.

11

10520321

WASHER,18.4mm ID x 32mm OD x 4mm Thk

1шт.
