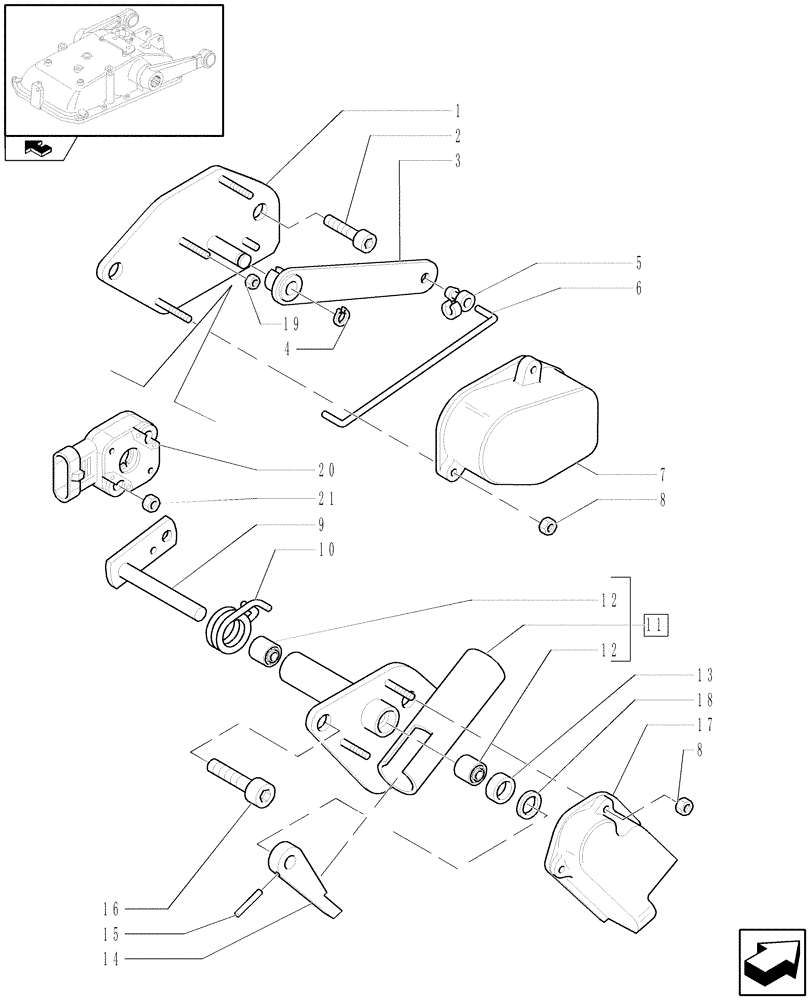

Запчасти Case IH FARMALL 105V (1.82.5/01) - ELECTRONIC LIFT - LIFT CONTROLS. (VAR.331832-332832 / 743523) (07) - HYDRAULIC SYSTEM

1

47132772

SUPPORT

1шт.

2

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

2шт.

3

5173906

LEVER

1шт.

4

11087976

CIRCLIP,Ext., M8, BLO

2шт.

5

9821714

CLIP

2шт.

6

5173914

TIE-ROD,4mm OD x 95.5mm L

1шт.

7

5173934

GUARD

1шт.

8

10794014

NUT,M4, Cl 8

4шт.

9

5175901

LEVER

1шт.

10

5175860

SPRING,28mm OD x 12mm L

1шт.

11

5175311

SUPPORT

ASSY, Incl 12

1шт.

12

5109988

ROLLER BEARING,Needle, 10mm ID x 16mm OD x 12mm W

2шт.

13

5105895

SEAL,10mm ID x 18mm OD x 6mm Thk

1шт.

14

5173933

LEVER

D=10

1шт.

15

14162074

LOCK PIN,M3 x 22, Slotted

1шт.

16

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

17

5175781

GUARD

1шт.

18

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

19

15896414

NUT,M5, Cl 8

1шт.

20

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

21

14048514

NUT,M4 x .7, Cl 8

1шт.
