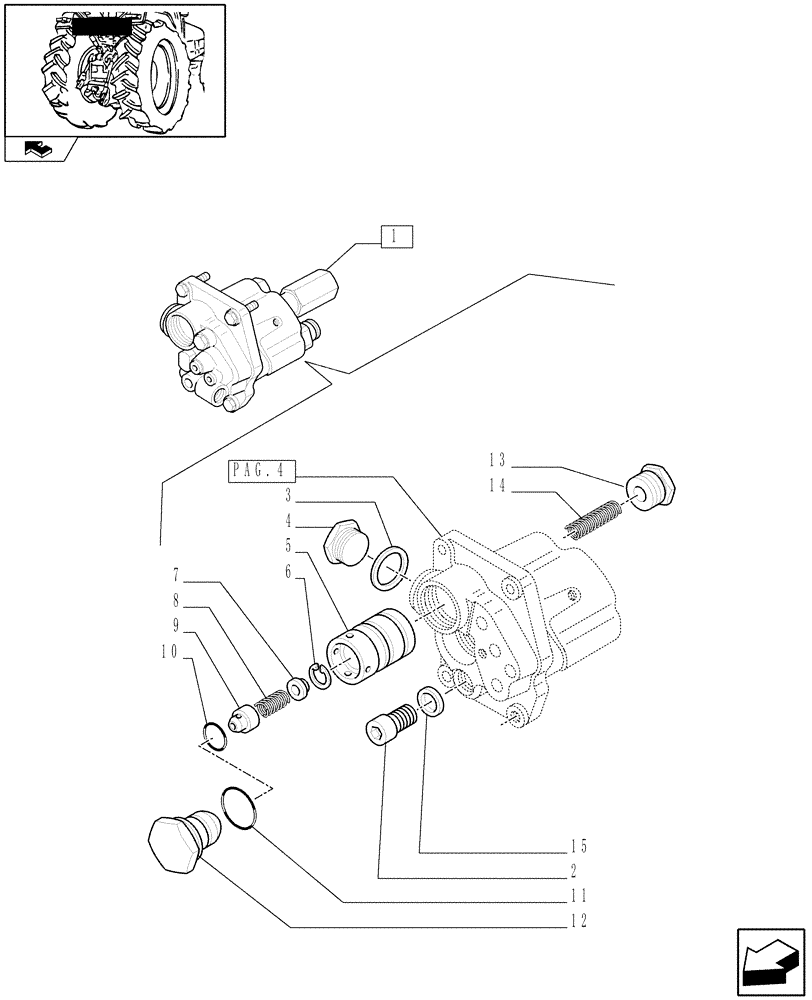

Запчасти Case IH FARMALL 105V (1.82.4[01]) - LIFTER DISTRIBUTOR AND VALVES BREAKDOWN (07) - HYDRAULIC SYSTEM

1

84277583

CONTROL VALVE

ASSY, Incl 2-17

1шт.

1

84277583R

REMAN-HYD VALVE

Reman Control Valve

1шт.

1

84277583C

CORE-VALVE HYD

Return Number

1шт.

2

14360524

HEX SOC SCREW,M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

3

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

1шт.

4

10275014

PLUG,Hex, M22 x 1.5, Cl 5.8

1шт.

5

84185201

VALVE SEAT

1шт.

6

13420376

SNAP RING,M12, Int

1шт.

7

5122030

SPRING WASHER,5mm ID x 11.7mm OD x 3mm Thk

1шт.

8

5115469

SPRING,Compression, 7.7mm OD x 14.5mm L

1шт.

9

5117732

PIN,10.5mm OD x 15.5mm L

1шт.

10

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

11

14458081

O-RING,1.112" ID x 0.103" Width

1шт.

12

5122029

PLUG,M32 x 1.5

1шт.

13

5117734

PLUG,M20 x 1.5

1шт.

14

5117729

SPRING,Compression, 11mm OD x 44mm L

1шт.

15

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

16

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

17

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12 x 18 x 1

1шт.
