(1.82.1/01[04]) - DELIVERY PIPE TO STEERING MOTOR

Запчасти Case IH FARMALL 105V (1.82.1/01[04]) - DELIVERY PIPE TO STEERING MOTOR (07) - HYDRAULIC SYSTEM

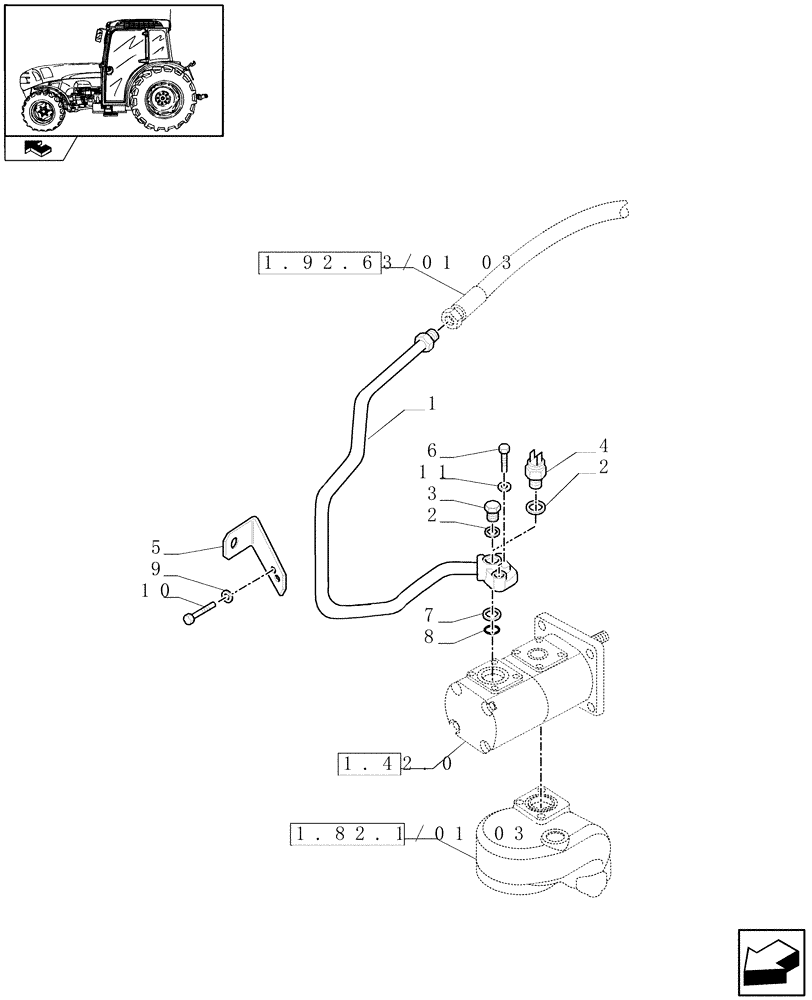

Схема запчастей Case IH FARMALL 105V - (1.82.1/01[04]) - DELIVERY PIPE TO STEERING MOTOR (07) - HYDRAULIC SYSTEM
1
9
1.42.0
1.92.63/01 03
2
11
10
8
6
7
3
5
1.82.1/01 03
2
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87723554

RIGID TUBE

, Serial Range: -`0

1шт.

To Steering Motor

1шт.

2

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

3

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

4

87494632

PRESSURE SWITCH,M12 x 1.5

, Serial Range: -`0

1шт.

Hydraulic Trailer Brake - Italy, VAR.333372-338372,Safety Switch for Trailer Brake Circuit

1шт.

5

87697040

RETAINER COLLAR

1шт.

6

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

7

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

1шт.

8

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

9

17094714

LOCK WASHER,M6 x 13

1шт.

10

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

1шт.

11

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.
