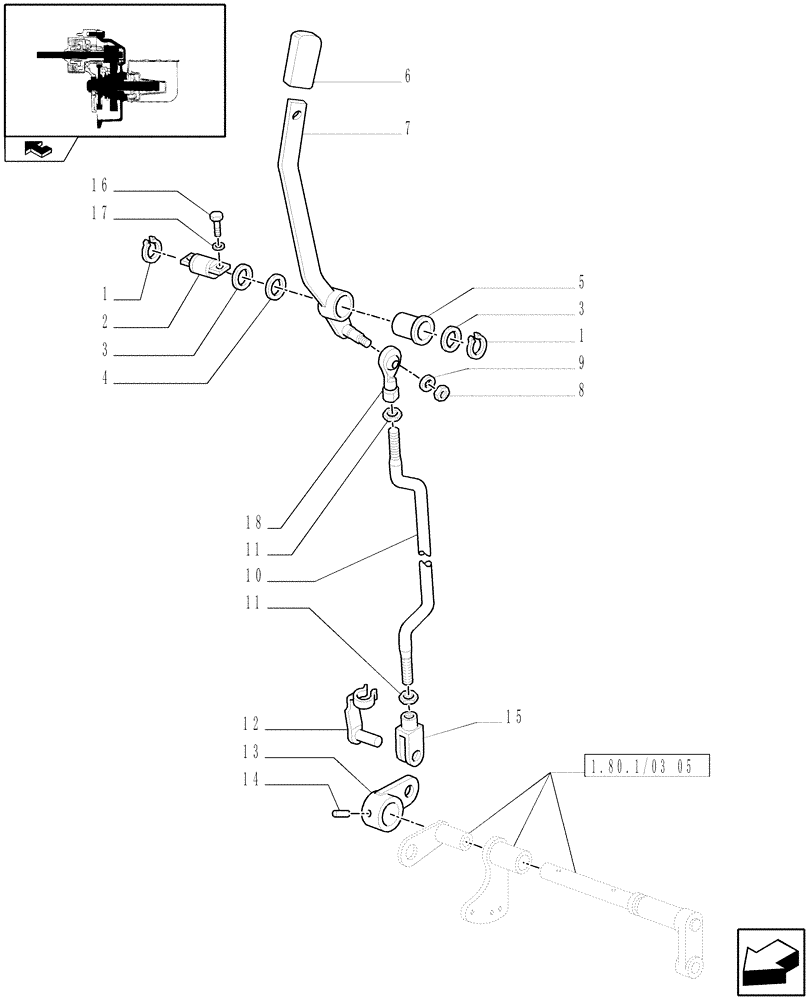

Запчасти Case IH FARMALL 105V (1.80.1/03[06]) - POWER TAKE-OFF (540-540E-1000 RPM) WITH GROUND SPEED - COUPLING LEVER (VAR.330817) (07) - HYDRAULIC SYSTEM

1

11066976

SNAP RING,M21, Ext

2шт.

2

5188383

PIN,21mm x 68mm OD

1шт.

3

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

35 x 2 x 12

2шт.

4

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

21 x 35

1шт.

5

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

21 x 27 x 22

1шт.

6

5178867

KNOB

1шт.

7

5191593

LEVER

1шт.

8

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

9

11194371

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.4mm Thk

1шт.

10

84492244

TIE-ROD,M8 x 1.25 x 387.7mm

1шт.

11

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

2шт.

12

5189396

PIN,8mm OD x 19mm L

1шт.

13

5191599

LEVER

1шт.

14

13942770

ROLL PIN

1шт.

15

10007871

YOKE,8mm ID Pin Hole, M8 x 42mm L

1шт.

16

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

18

82007661

BALL JOINT,M8 x 1.25 x 48mm

1шт.
