(1.80.1/03[03]) - POWER TAKE-OFF (540-540E-1000 RPM) WITH GROUND SPEED - SHAFTS AND REAR GUARD (VAR.330817)

Запчасти Case IH FARMALL 105V (1.80.1/03[03]) - POWER TAKE-OFF (540-540E-1000 RPM) WITH GROUND SPEED - SHAFTS AND REAR GUARD (VAR.330817) (07) - HYDRAULIC SYSTEM

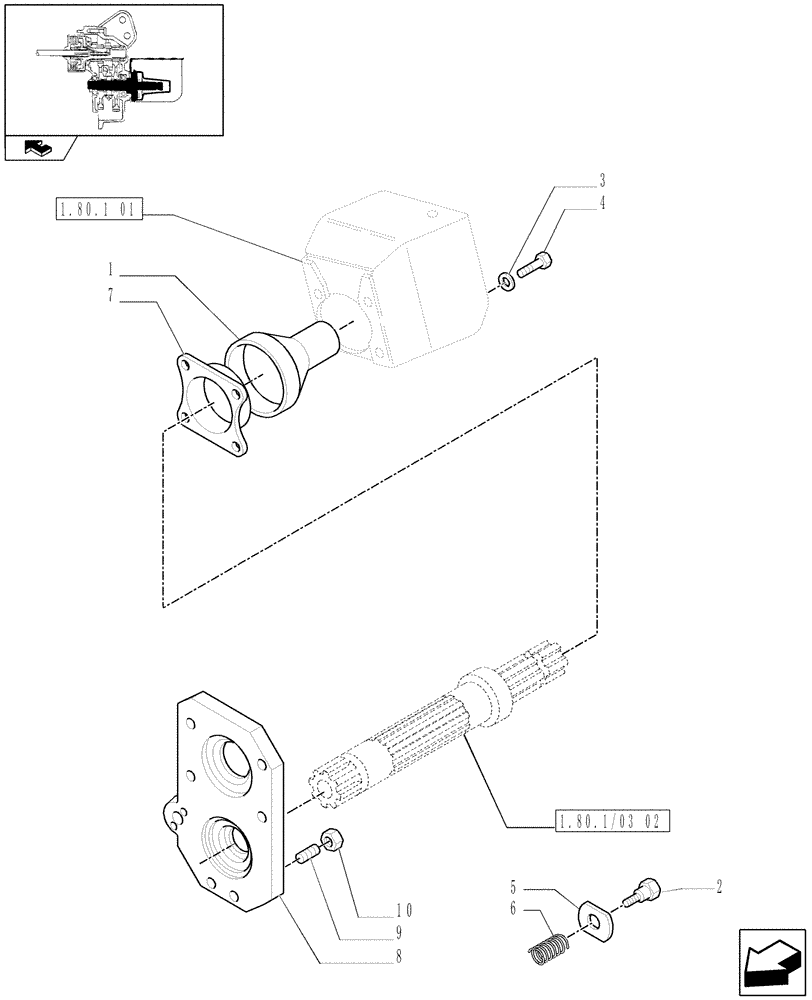

Схема запчастей Case IH FARMALL 105V - (1.80.1/03[03]) - POWER TAKE-OFF (540-540E-1000 RPM) WITH GROUND SPEED - SHAFTS AND REAR GUARD (VAR.330817) (07) - HYDRAULIC SYSTEM
1.80.1/03 02
7
8
1
3
4
10
home
1.80.1 01
5
2
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5171520

SHIELD,132mm L

1шт.

2

47130774

PIN,13.5mm OD x 22mm L

1шт.

3

10569374

LOCK WASHER,M8

4шт.

4

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

6

47132279

SPRING,Compression, 33mm OD x 29mm L

1шт.

7

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

8

5187934

COVER

1шт.

9

13543624

STUD,M8 x 1.25 x 46mm L, 22 Thd, Cl 8.8

M8 x 16 x 30

6шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

6шт.
