Запчасти Case IH FARMALL 105V (1.80.1/01[02]) - POWER TAKE-OFF (540-540E RPM) LESS GROUND SPEED - COUPLING LEVER AND FORK (VAR.333804) (07) - HYDRAULIC SYSTEM

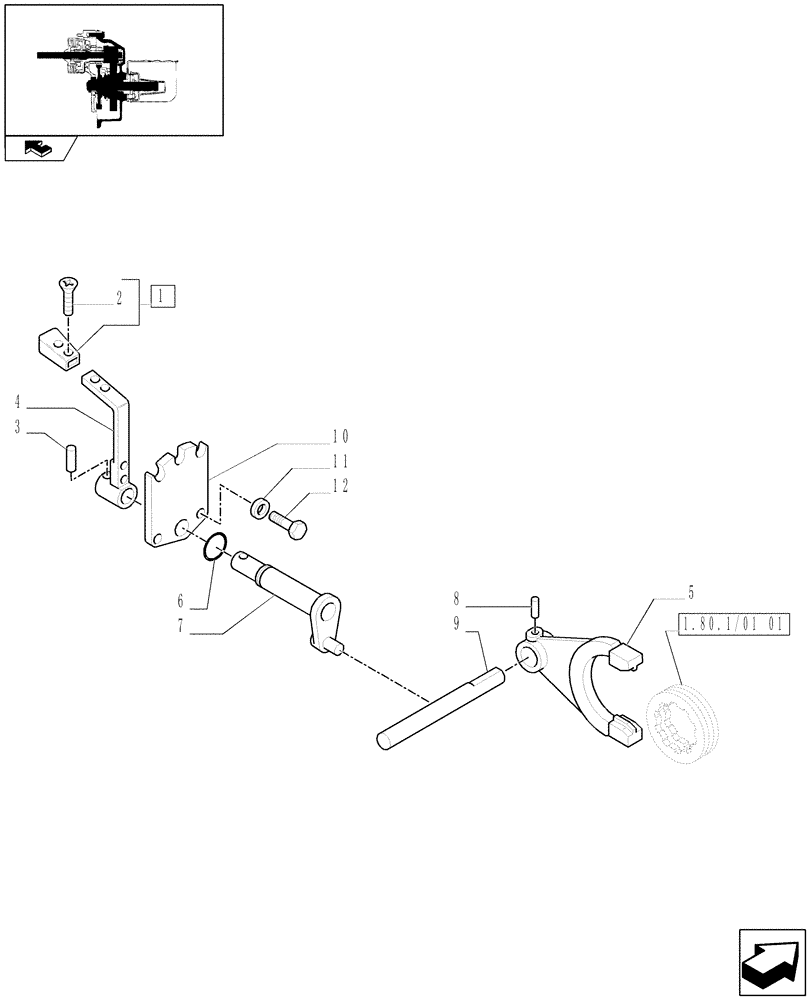

Схема запчастей Case IH FARMALL 105V - (1.80.1/01[02]) - POWER TAKE-OFF (540-540E RPM) LESS GROUND SPEED - COUPLING LEVER AND FORK (VAR.333804) (07) - HYDRAULIC SYSTEM
5
1
10
8
3
6
2
11
4
1.80.1/01 01
7
12
home
9

Артикул

Название

Примечание

Количество

1

5131161

HANDLE GRIP

ASSY, Incl 2

1шт.

2

15919407

SCREW,Cross Flat Hd, M6.3 x 16

2шт.

3

14601270

ROLL PIN,M5 x 28, Slotted

1шт.

4

5177567

LEVER

ASSY

1шт.

5

5173448

YOKE,16mm Hole Dia

1шт.

6

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

7

5173465

LEVER

ASSY

1шт.

8

13942570

ROLL PIN,M6 x 30mm

1шт.

9

5176335

ROD,16mm OD x 116mm L

540/750

1шт.

10

5177569

PLATE

1шт.

11

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

2шт.

12

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 12
