Запчасти Case IH FARMALL 105V (1.75.4/04) - HYDRAULIC TRAILER BRAKE (ITALY) - CABLES (VAR.333372-338372 / 743517) (06) - ELECTRICAL SYSTEMS

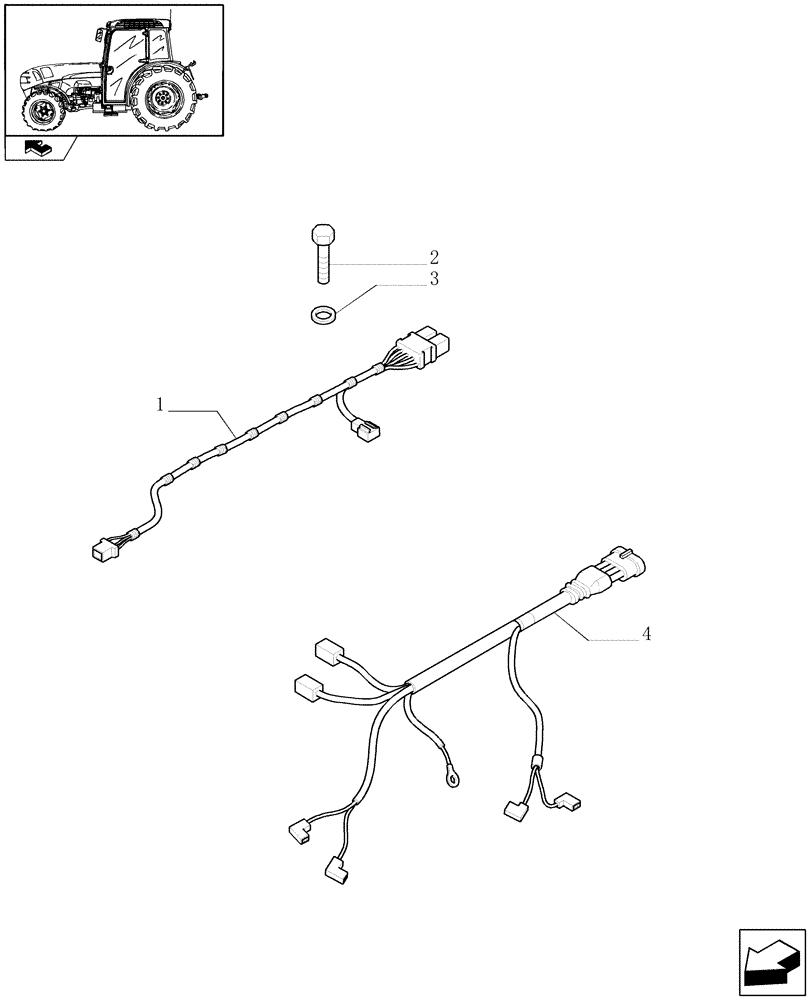

Схема запчастей Case IH FARMALL 105V - (1.75.4/04) - HYDRAULIC TRAILER BRAKE (ITALY) - CABLES (VAR.333372-338372 / 743517) (06) - ELECTRICAL SYSTEMS
home
2
1
3
4

Артикул

Название

Примечание

Количество

1

87560757

CABLE

Trailer Brake Dashboard Harness

1шт.

2

13273924

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

2шт.

3

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

4

87691982

ELECTRIC CABLE

Trailer Brake Trasmission Harness

1шт.

Выбрано товаров: 4
