Запчасти Case IH FARMALL 105V (1.42.0/ B) - HYDRAULIC PUMP - BREAKDOWN (04) - FRONT AXLE & STEERING

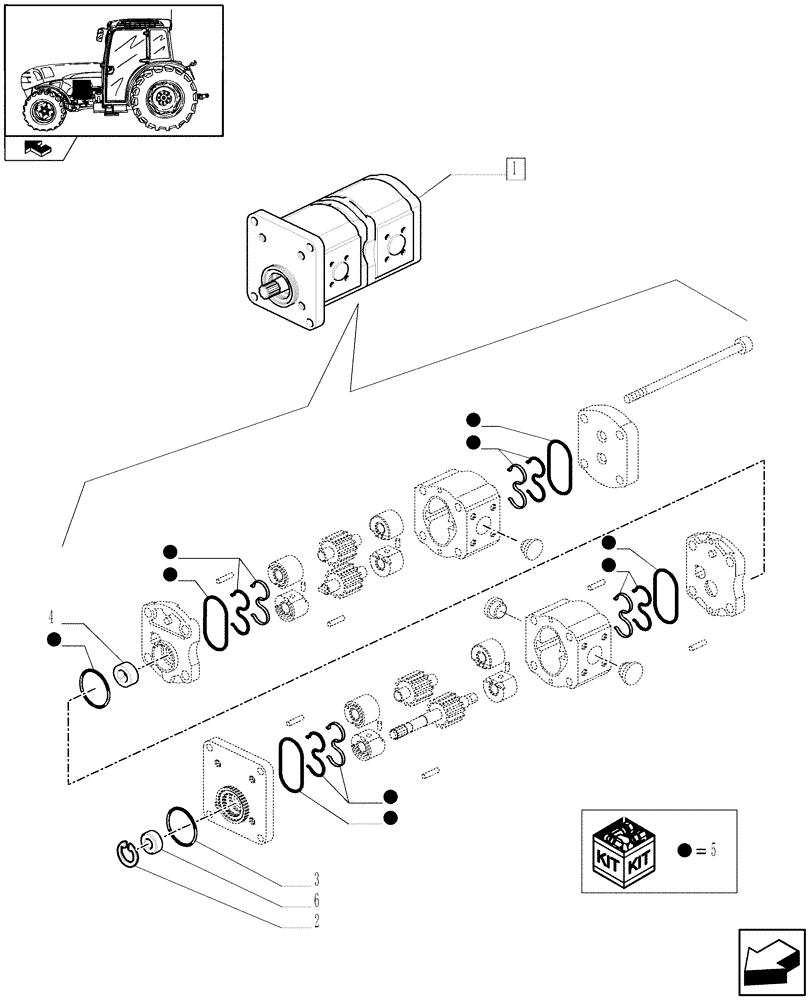

Схема запчастей Case IH FARMALL 105V - (1.42.0/ B) - HYDRAULIC PUMP - BREAKDOWN (04) - FRONT AXLE & STEERING
5
3
4
5
1
2
5
5
5
5
5
5
6
5
5
5
home

Артикул

Название

Примечание

Количество

1

47129337

HYDRAULIC PUMP,DOUBLE, 19.55 CC + 11.26 CC

ASSY, Incl 2-6

1шт.

47129337R

REMAN-HYD PUMP

FARMALL 95N, FARMALL 105N Both UPGRADE SPECIAL TRACTOR

1шт.

47129337C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

11058870

CIRCLIP,30mm ID

30 x 1.2

1шт.

3

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

4

87311810

BUSHING

1шт.

5

47132368

SEAL KIT

1шт.

6

87311809

SEAL

1шт.

Выбрано товаров: 8
