(1.41.0/ A) - 2WD FRONT AXLE - HYDRAULIC STEERING CYLINDER - BREAKDOWN

Запчасти Case IH FARMALL 105V (1.41.0/ A) - 2WD FRONT AXLE - HYDRAULIC STEERING CYLINDER - BREAKDOWN (04) - FRONT AXLE & STEERING

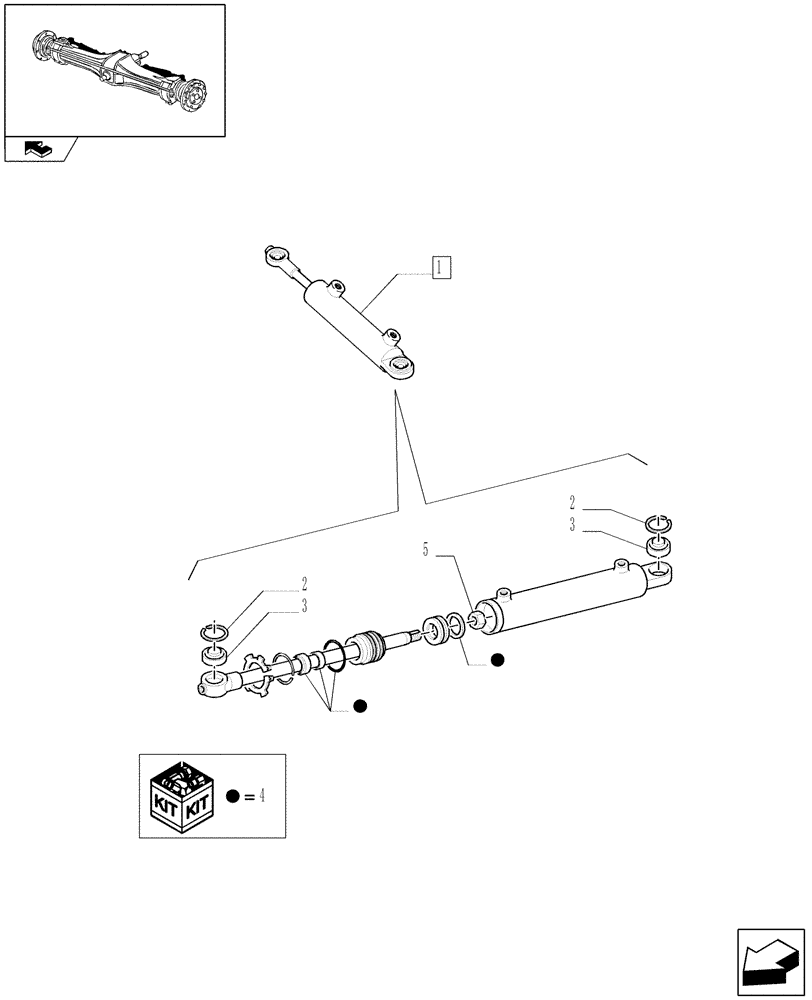

Схема запчастей Case IH FARMALL 105V - (1.41.0/ A) - 2WD FRONT AXLE - HYDRAULIC STEERING CYLINDER - BREAKDOWN (04) - FRONT AXLE & STEERING
4
1
2
3
5
home
3
4
4
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5188497

SERVO STEERING CYL

ASSY, Incl 2-5

1шт.

2

5190903

LOCKING RING

1шт.

3

5190901

BUSHING

1шт.

4

5190591

SEAL KIT

1шт.

5

15504021

NUT,M16 x 1.5

1шт.
