(1.40.3/10[01]) - STD FRONT AXLE W/EL.-HYDR. DIFF. LOCK, W/FRONT BRAKES (40 KM/H) - AXLE - SHAFT ARTICUL. (VAR.336329)

Запчасти Case IH FARMALL 105V (1.40.3/10[01]) - STD FRONT AXLE W/EL.-HYDR. DIFF. LOCK, W/FRONT BRAKES (40 KM/H) - AXLE - SHAFT ARTICUL. (VAR.336329) (04) - FRONT AXLE & STEERING

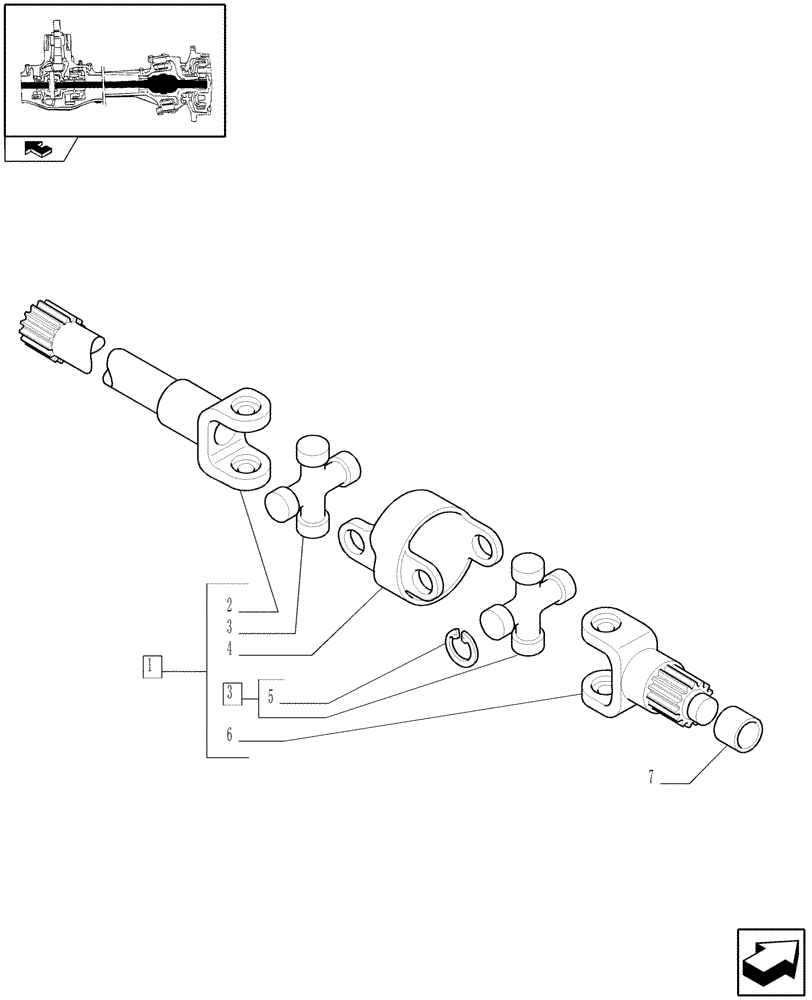

Схема запчастей Case IH FARMALL 105V - (1.40.3/10[01]) - STD FRONT AXLE W/EL.-HYDR. DIFF. LOCK, W/FRONT BRAKES (40 KM/H) - AXLE - SHAFT ARTICUL. (VAR.336329) (04) - FRONT AXLE & STEERING
3
3
home
5
6
7
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87310645

AXLE-SHAFT, ARTICULA

ASSY, Incl 2-6

2шт.

2

5194358

AXLE-SHAFT, ARTICULA,Fork (Differential Side)

Diff.Side

2шт.

3

5194360

SPIDER

ASSY, Incl 5

4шт.

4

5194359

YOKE

2шт.

5

80278643

CIRCLIP

16шт.

6

5194361

AXLE-SHAFT, ARTICULA,Fork (Wheel Side)

Wheel Side

2шт.

7

87642125

BUSHING

2шт.

Выбрано товаров: 7
