(1.40.2/10) - STD FRONT AXLE WITH EL.-HYDR. DIFF. LOCK LESS FRONT BRAKES (30KM/H) - DIFFERENTIAL GEARS AND SHAFT (VAR.330145)

Запчасти Case IH FARMALL 105V (1.40.2/10) - STD FRONT AXLE WITH EL.-HYDR. DIFF. LOCK LESS FRONT BRAKES (30KM/H) - DIFFERENTIAL GEARS AND SHAFT (VAR.330145) (04) - FRONT AXLE & STEERING

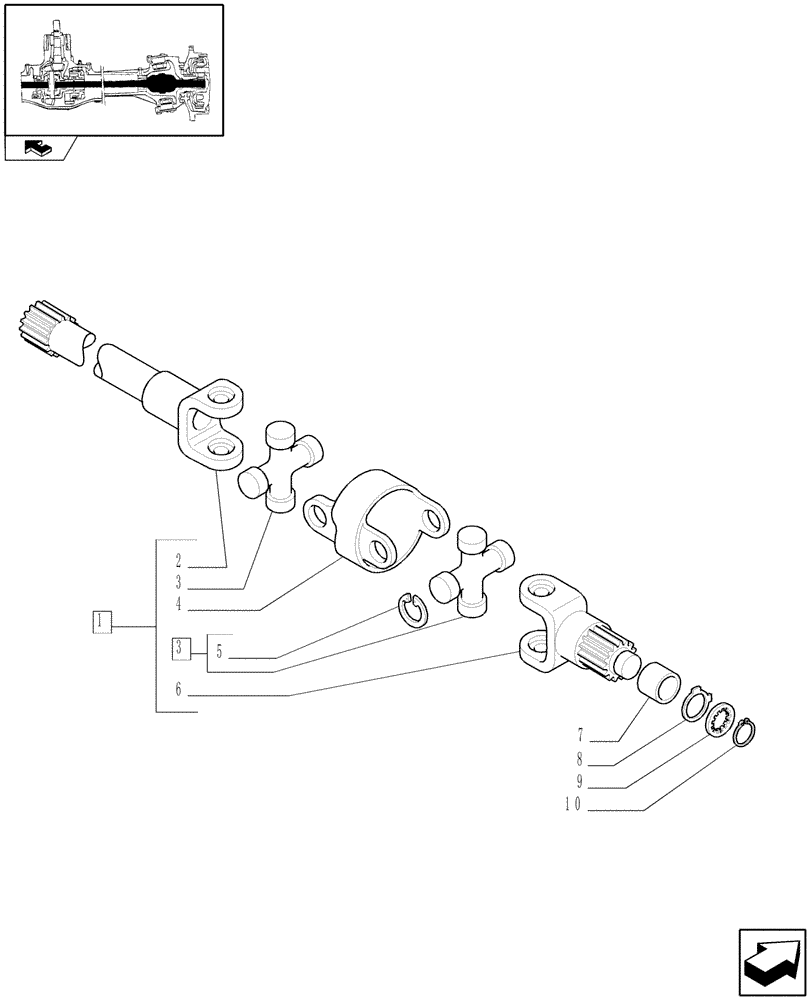

Схема запчастей Case IH FARMALL 105V - (1.40.2/10) - STD FRONT AXLE WITH EL.-HYDR. DIFF. LOCK LESS FRONT BRAKES (30KM/H) - DIFFERENTIAL GEARS AND SHAFT (VAR.330145) (04) - FRONT AXLE & STEERING
1
7
10
3
home
5
3
8
4
6
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5194195

AXLE-SHAFT, ARTICULA

ASSY, Incl 2-6

2шт.

2

5194196

AXLE-SHAFT, ARTICULA

Diff.Side

2шт.

3

5194198

SPIDER

ASSY, Incl 5

4шт.

4

5194197

YOKE

2шт.

5

11058276

SNAP RING,M24, Int

16шт.

6

84592015

AXLE-SHAFT, ARTICULA

Wheel Side

2шт.

7

87642125

BUSHING

2шт.

Выбрано товаров: 7
