Запчасти Case IH FARMALL 105V (1.40.0/10A) - DIFFERENTIAL SHAFT - BREAKDOWN (04) - FRONT AXLE & STEERING

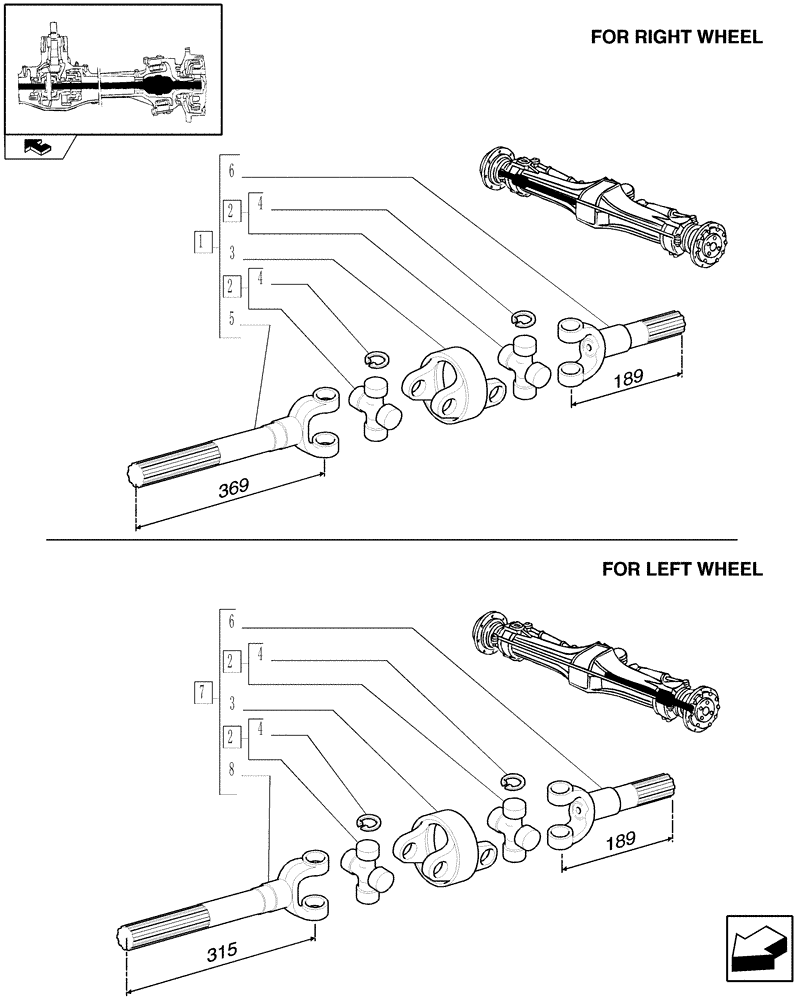

Схема запчастей Case IH FARMALL 105V - (1.40.0/10A) - DIFFERENTIAL SHAFT - BREAKDOWN (04) - FRONT AXLE & STEERING
3
3
2
2
4
4
7
2
5
6
4
2
6
8
4
1
home

Артикул

Название

Примечание

Количество

1

5184854

AXLE-SHAFT, ARTICULA,23.7/27.7mm ID x 29.5/42.5mm OD x 615mm L, 10/12T

RH, ASSY, Incl 2-6

1шт.

2

5191024

SPIDER

ASSY, Incl 4

2шт.

3

5191027

YOKE

1шт.

4

5191091

LOCKING RING

8шт.

5

5191029

YOKE

1шт.

6

5191026

YOKE

1шт.

7

5184853

AXLE-SHAFT, ARTICULA,23.7/27.7mm ID x 29.5/42.5mm OD x 561mm L, 10/12T

LH, ASSY, Incl 2-4, 6, 8

1шт.

8

5191028

YOKE

1шт.

Выбрано товаров: 8
