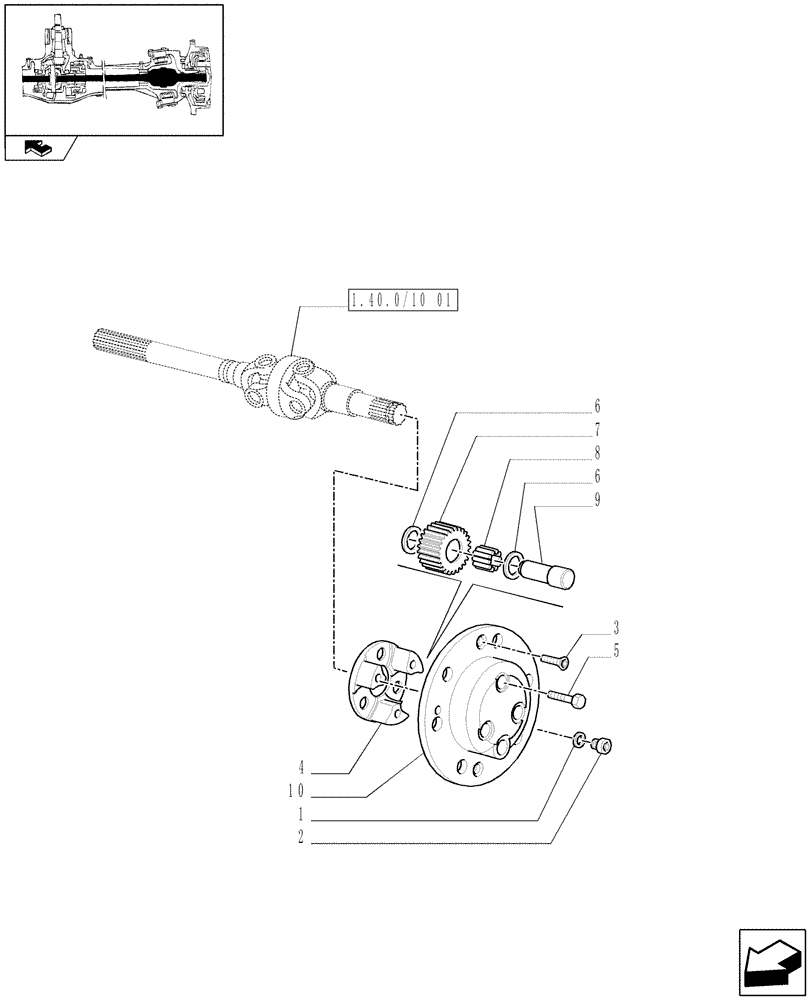

Запчасти Case IH FARMALL 105V (1.40.0/10[02]) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - AXLE-SHAFT ARTICUL. (04) - FRONT AXLE & STEERING

1

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

2

10275011

PLUG,M22 x 1.5 x 13

2шт.

3

5169757

CIRCLIP,133mm OD

2шт.

3

5171907

SCREW,FLAT, M10 x 1.25 x 25mm, Cl 8.8

M10

4шт.

4

5180625

DISC,128.5mm OD x 26.5mm Thk, 42T

2шт.

4

5179464

PARTITION

2шт.

5

5179504

RING GEAR,120mm ID x 145mm OD x 46.5mm Thk, 14/42T

2шт.

6

5169615

THRUST WASHER,18.2mm ID x 32mm OD x 0.8mm Thk

18 x 2 x 32 x 0.8

12шт.

7

5169594

IDLER PINION,14T

6шт.

8

5171906

ROLLER BEARING,18.2mm ID x 24.2mm OD x 25.8mm W

6шт.

9

5179472

PIN,18.2mm OD x 57.5mm L

6шт.

10

5179463

CARRIER

2шт.

11

16326234

BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9

6шт.
