(1.40.0/07) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - DIFFERENTIAL

Запчасти Case IH FARMALL 105V (1.40.0/07) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - DIFFERENTIAL (04) - FRONT AXLE & STEERING

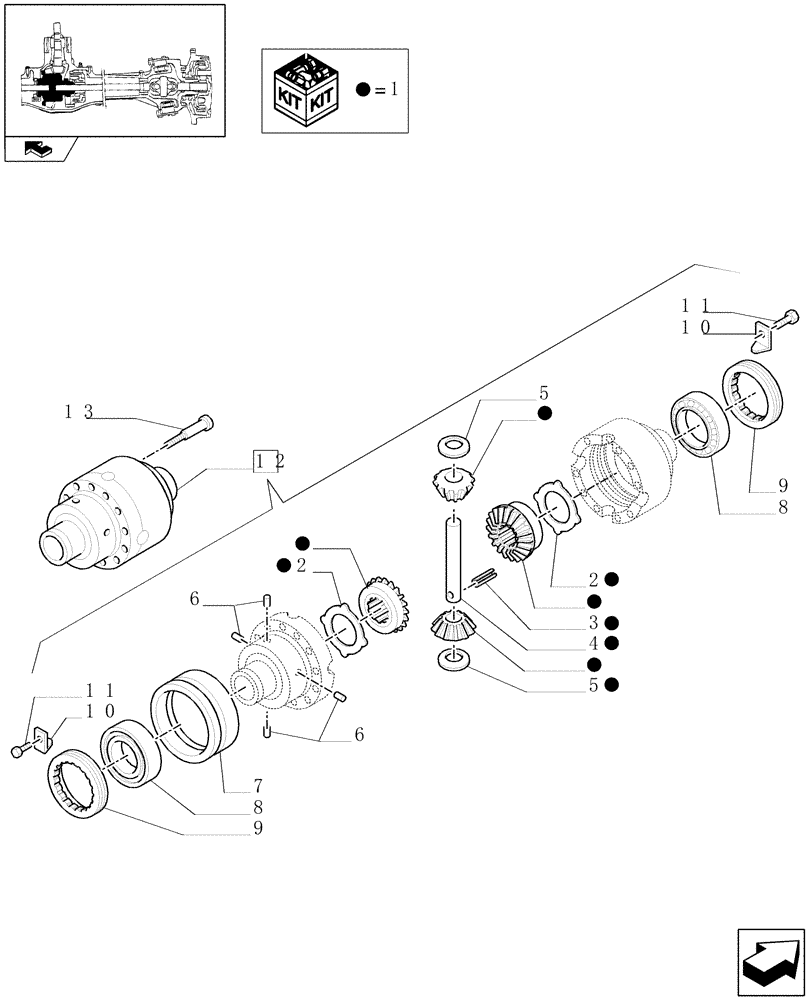

Схема запчастей Case IH FARMALL 105V - (1.40.0/07) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - DIFFERENTIAL (04) - FRONT AXLE & STEERING
9
1
1
home
6
1
1
1
6
7
9
1
11
10
2
5
1
10
1
13
1
1
1
8
5
2
11
12
8
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5194182

KIT

ASSY, Incl 2-5

1шт.

2

5194183

DISC

2шт.

3

84592012

PIN,6mm OD x 40mm L, Slotted

6 x 28

1шт.

4

1966157C1

SHAFT

1шт.

5

5194186

WASHER

2шт.

6

84582583

PIN

10 x 15.2

4шт.

7

5194188

SLEEVE

1шт.

8

84578839

NEEDLE ROLLER

2шт.

9

5194190

RING NUT,M94 x 2

2шт.

10

84582585

PLATE

2шт.

11

112486A1

BOLT,Hex, M6 x 12

2шт.

12

5194193

DIFFERENTIAL GEAR

ASSY, Incl 1-11

1шт.

13

84582584

SCREW

12шт.
