(1.40.0/02[03]) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - SENSOR

Запчасти Case IH FARMALL 105V (1.40.0/02[03]) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - SENSOR (04) - FRONT AXLE & STEERING

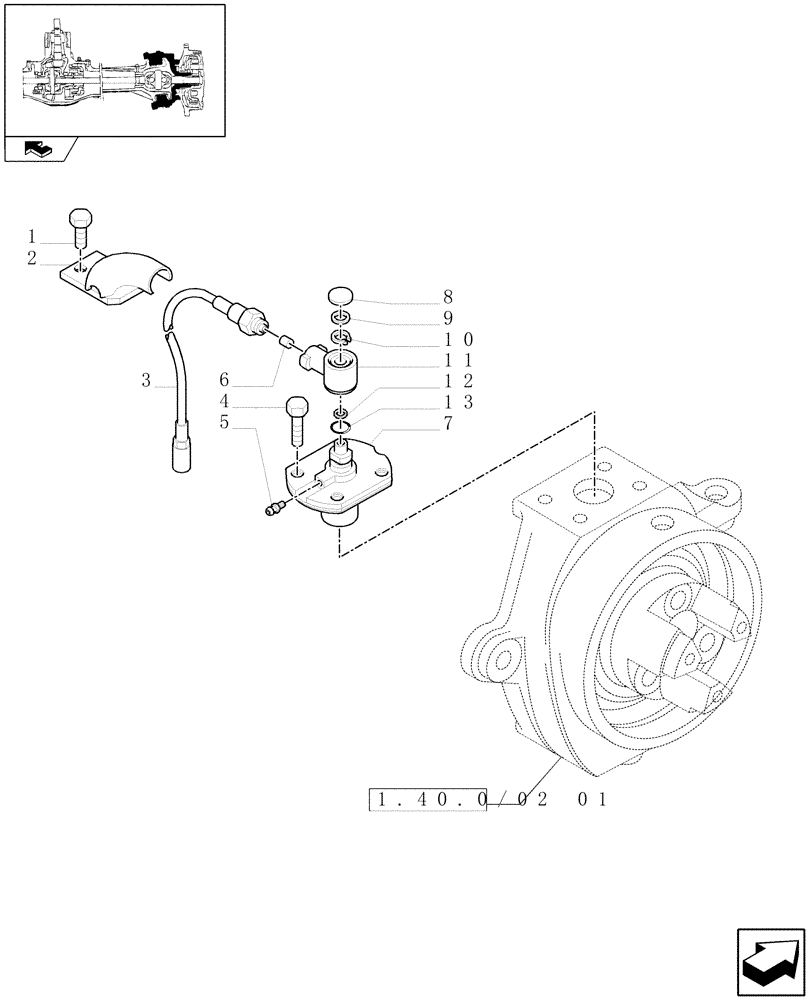

Схема запчастей Case IH FARMALL 105V - (1.40.0/02[03]) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - SENSOR (04) - FRONT AXLE & STEERING
6
1
12
7
home
9
5
4
3
1.40.0/02 01
13
2
10
11
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84569105

SCREW,M8 x 20

M8 x 20

2шт.

2

5194270

SUPPORT

1шт.

3

84578828

SENSOR

1шт.

4

84582582

BOLT,Hex, #12 - 24 x 1-11/16"

M12 x 25

4шт.

5

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

6

84578829

PIN

1шт.

7

5194280

PIN

RH

1шт.

8

84578830

PLUG

1шт.

9

11065970

CIRCLIP,M10

1шт.

10

84578836

WASHER

1шт.

11

84578827

HUB

1шт.

12

84582580

O-RING

1шт.

13

84578837

O-RING

1шт.

Выбрано товаров: 13
