(1.40.0/02[01]) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - STEERING KNUCKLE

Запчасти Case IH FARMALL 105V (1.40.0/02[01]) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - STEERING KNUCKLE (04) - FRONT AXLE & STEERING

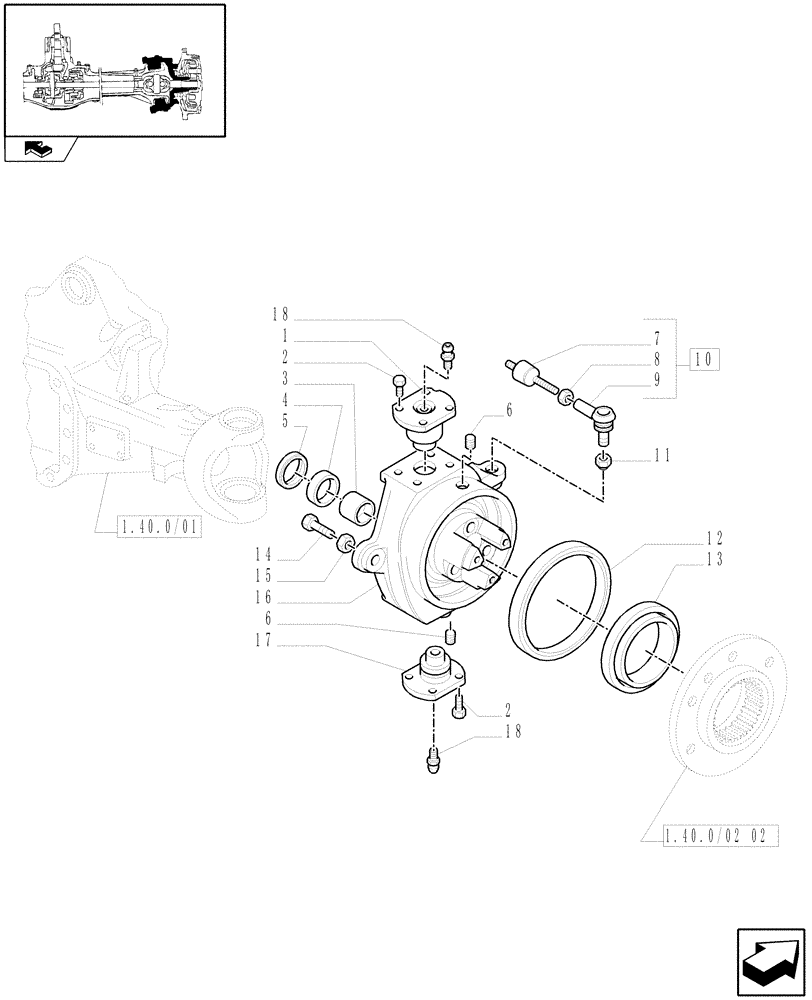

Схема запчастей Case IH FARMALL 105V - (1.40.0/02[01]) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - STEERING KNUCKLE (04) - FRONT AXLE & STEERING
18
1.40.0/02 02
12
18
13
17
6
5
16
14
home
9
10
4
8
15
2
3
7
11
1
6
1.40.0/01
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5194254

PIN

2шт.

2

87515424

SCREW,#12 - 25 x 1 3/4"

12шт.

3

5194265

BUSHING

2шт.

4

87311512

BUSHING

2шт.

5

5194267

SEAL

2шт.

6

5194259

PLUG,M16 x 1.5

4шт.

7

5194240

TIE-ROD

2шт.

87649362

BOOT

2шт.

8

12164224

NUT,M18 x 1.5, Cl 10

2шт.

9

5194241

ARTICULATION

2шт.

1-33-741-042

BOOT

1шт.

10

5194239

TIE-ROD

ASSY, Incl 7-9

1шт.

11

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.

12

87492975

SEAL

2шт.

13

84592016

BALL BEARING

2шт.

14

5194264

BOLT,M16 x 75mm

M16 x 75

2шт.

15

10790521

NUT,M16 x 1.5, Cl 10

2шт.

16

87492973

STUB AXLE/STEERING S

RH

1шт.

16

87492974

STUB AXLE/STEERING S

LH

1шт.

17

5194261

PIN

2шт.

18

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

3шт.
