(1.40.0) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - PIPES

Запчасти Case IH FARMALL 105V (1.40.0) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - PIPES (04) - FRONT AXLE & STEERING

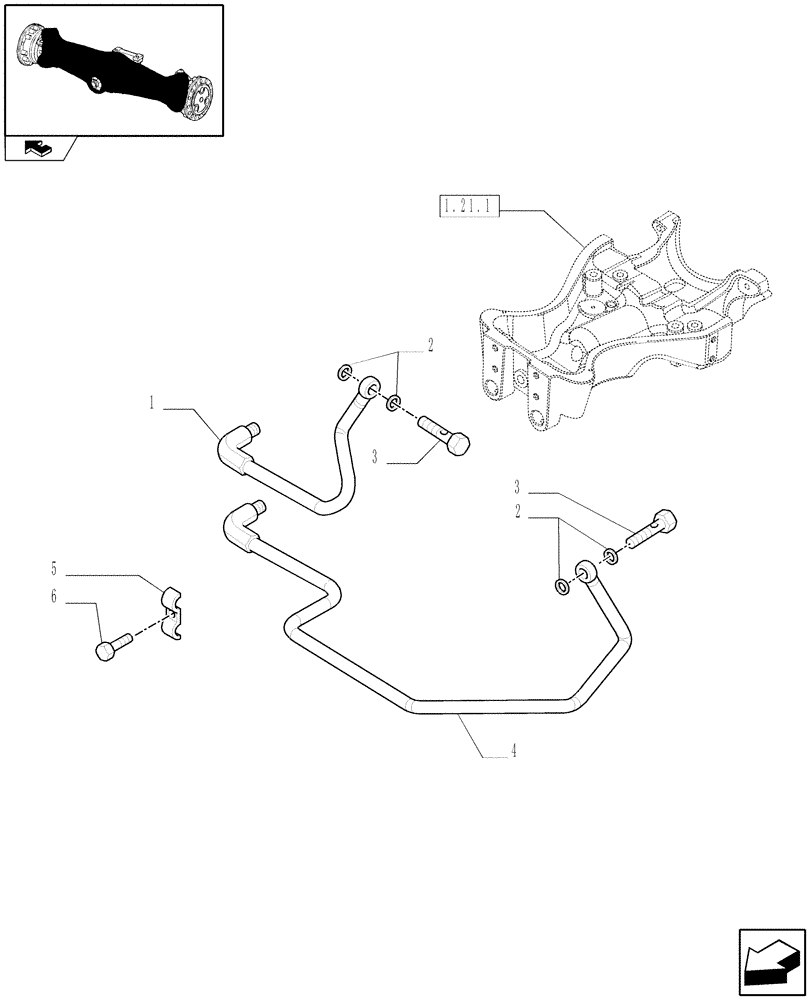

Схема запчастей Case IH FARMALL 105V - (1.40.0) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - PIPES (04) - FRONT AXLE & STEERING
3
home
1.21.1
3
5
2
4
6
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47125598

RIGID TUBE

1шт.

2

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

4шт.

3

4864083

BANJO BOLT,M14 x 1.5 x 30mm

2шт.

4

47125593

RIGID TUBE

1шт.

5

4999554

CLAMP,2 Hoses

1шт.

6

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.
