Запчасти Case IH FARMALL 100V (90.116.250) - VAR - 342377, 759013 - REAR FENDER SPLASH GUARD, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

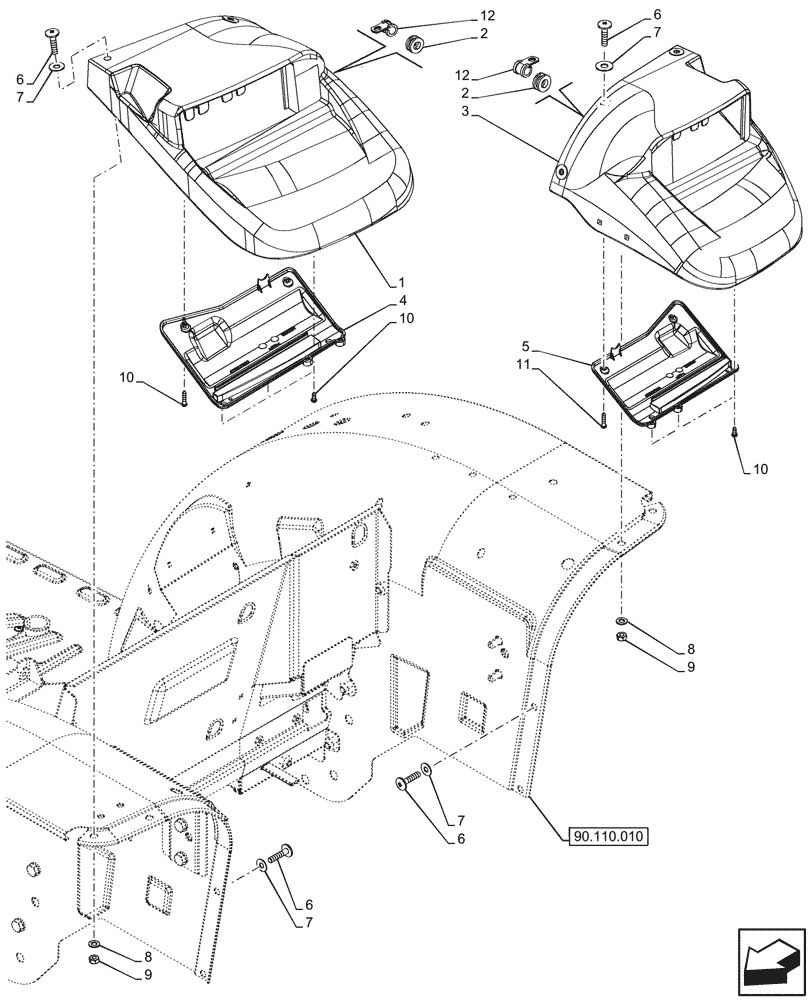

Схема запчастей Case IH FARMALL 100V - (90.116.250) - VAR - 342377, 759013 - REAR FENDER SPLASH GUARD, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.010
11
12
4
2
5
2
1
10
8
8
6
10
7
6
6
7
9
10
12
9
6
7
3
7

Артикул

Название

Примечание

Количество

1

47928071

MUDFLAP

Guard LH

1шт.

2

10403080

GROMMET

2шт.

3

47928070

MUDFLAP

Guard RH

1шт.

4

47927062

MUDFLAP

1шт.

5

47927060

MUDFLAP

1шт.

6

14781914

SCREW,Cross Rec Cheese Hd, M8 x 20mm, Cl 5.8

6шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

8

12625224

LOCK WASHER,8.15mm ID x 20mm OD x 1mm Thk

6шт.

9

16100824

NUT,M8, Cl 10

6шт.

10

15901475

SELF-TAP SCREW,Cross Pan Hd, M2.9 x 9.50mm, SST

8шт.

11

15901675

SELF-TAP SCREW,Cross Pan Hd, M2.9 x 16mm, SST

2шт.

12

10450290

CLAMP,12mm, Coat, 9mm Bolt Hole, P Type

2шт.

Выбрано товаров: 12
