Запчасти Case IH FARMALL 100V (90.110.290) - VAR - 759022 - COVER, RH, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

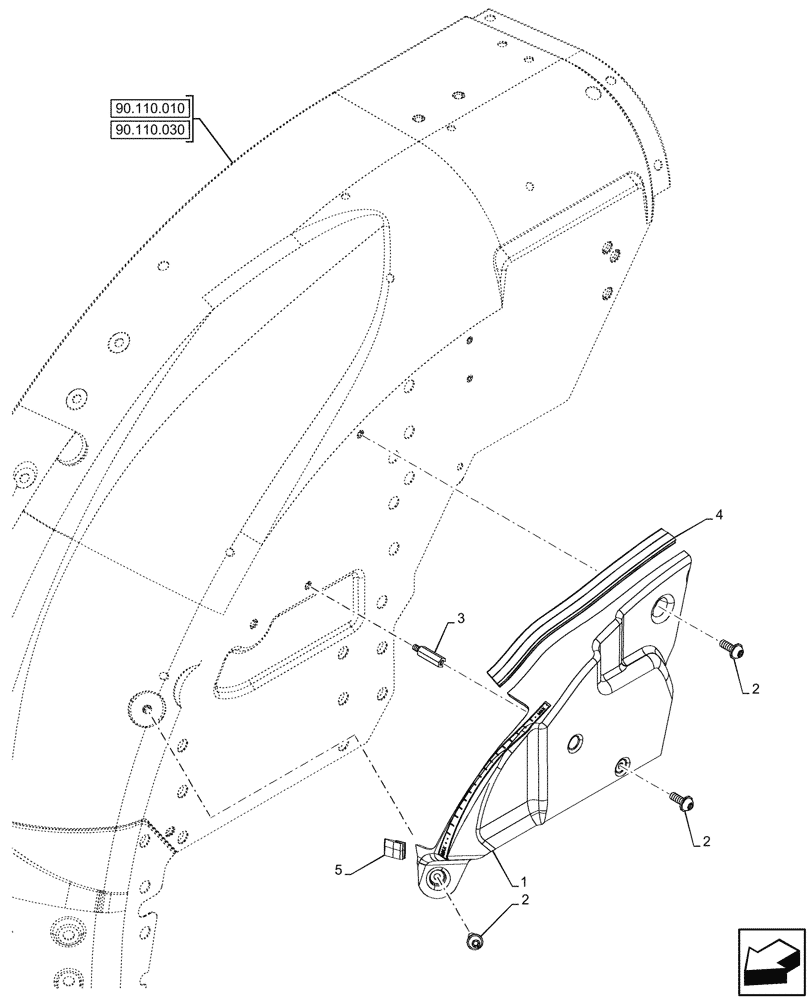

Схема запчастей Case IH FARMALL 100V - (90.110.290) - VAR - 759022 - COVER, RH, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.010
2
3
2
1
2
5
4
90.110.030

Артикул

Название

Примечание

Количество

1

47864016

COVER

RH

1шт.

2

84349421

SCREW,Torx Rnd Wshr Hd, M6 x 16mm, Cl 8.8, Full Thd

3шт.

3

47721525

SPACER,Hex, M6 x 1 x 42mm L

1шт.

4

47720089

SEAL,257mm L

1шт.

5

44914715

GASKET,22.5mm W x 322mm L x 10mm Thk

1шт.

Выбрано товаров: 5
