Запчасти Case IH FARMALL 100V (37.110.160) - VAR - 342377, 759013 - REAR, HYDRAULIC LIFT, CONTROL LEVER, W/ LIFT-O-MATIC PLUS, W/O CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

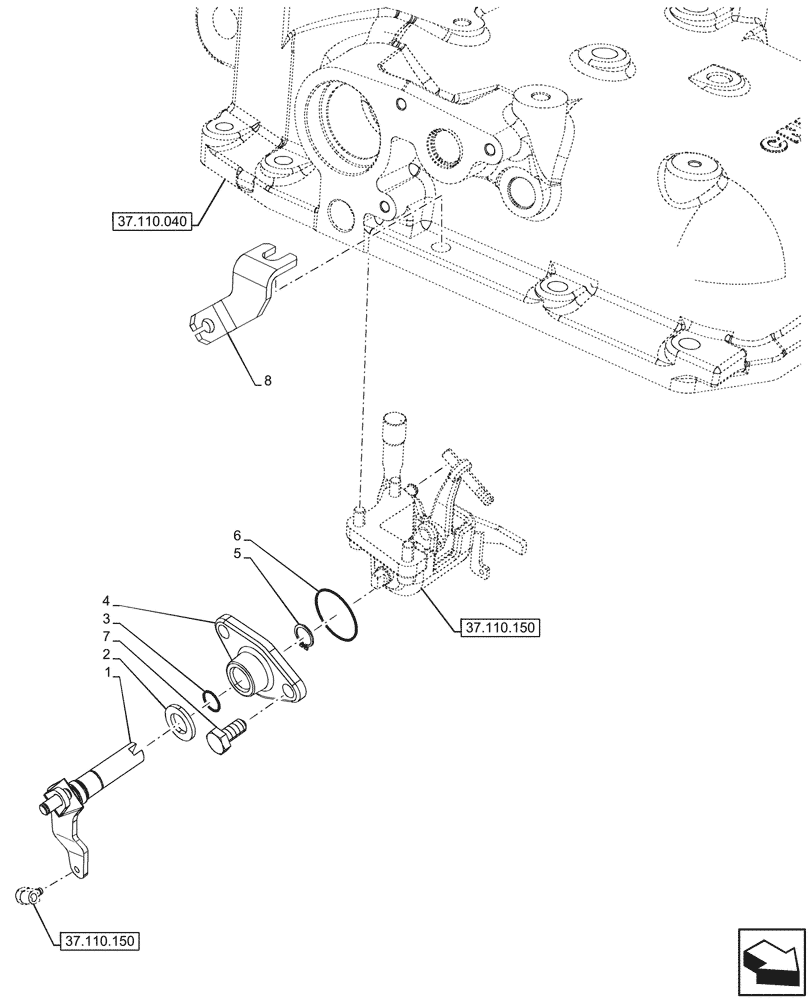

Схема запчастей Case IH FARMALL 100V - (37.110.160) - VAR - 342377, 759013 - REAR, HYDRAULIC LIFT, CONTROL LEVER, W/ LIFT-O-MATIC PLUS, W/O CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.110.150
4
2
6
3
1
7
8
5
37.110.040
37.110.150

Артикул

Название

Примечание

Количество

1

5188533

LEVER

1шт.

2

10520207

WASHER,M16 x 28 x 3

1шт.

3

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

4

5176916

SUPPORT

1шт.

5

11066476

SNAP RING,M16, Ext

1шт.

6

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

7

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

8

5176340

BRACKET

1шт.

Выбрано товаров: 8
