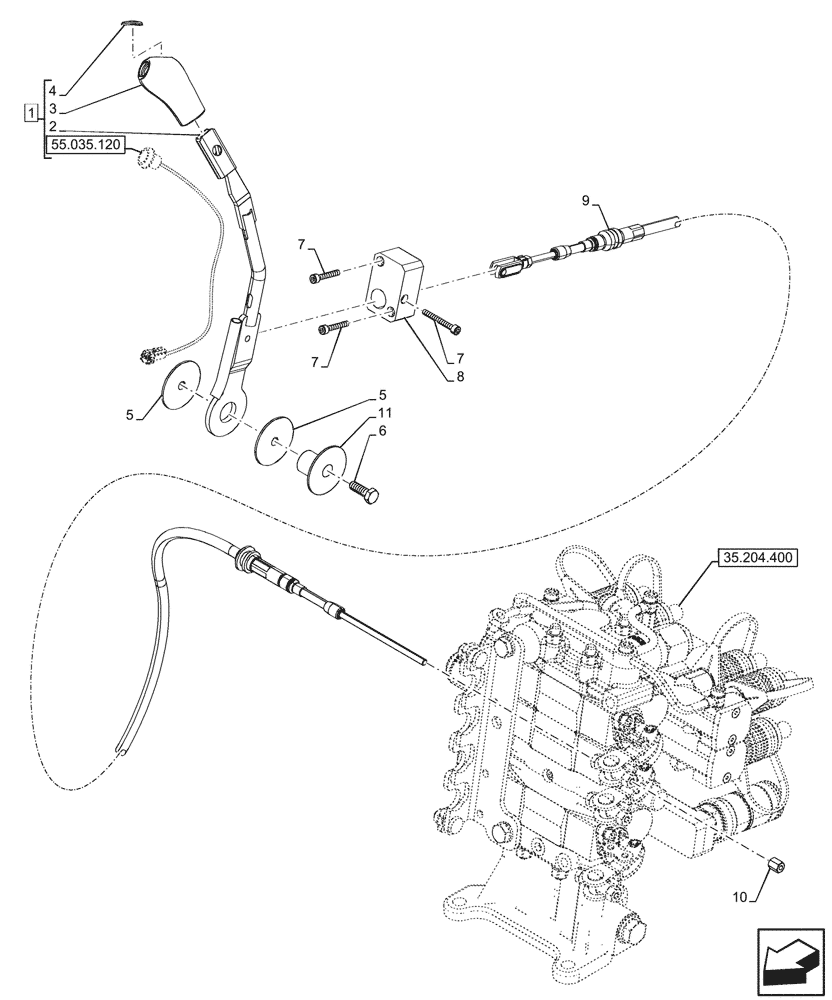

Запчасти Case IH FARMALL 100V (35.204.590) - VAR - 759024 - REMOTE CONTROL VALVE, W/ DIVERTER, LEVER, W/O CAB (35) - HYDRAULIC SYSTEMS

1

47599061

LEVER

ASSY, Remote 3 W/ Diverter, Incl 2 - 4

1шт.

See also Lever Components in Figure 55.035.120

1шт.

2

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

3

47381080

KNOB,Black

W/ Diverter, Black

1шт.

4

47057201

IDEOGRAM

1шт.

5

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

2шт.

6

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

7

87016469

HEX SOC SCREW,M5 x 25mm, Cl 8.8

3шт.

8

47749849

BLOCK

1шт.

9

48035925

REMOTE CONTROL

1шт.

10

10720114

NUT,Hex, M6 x 1

1шт.

11

47602415

HUB

1шт.
